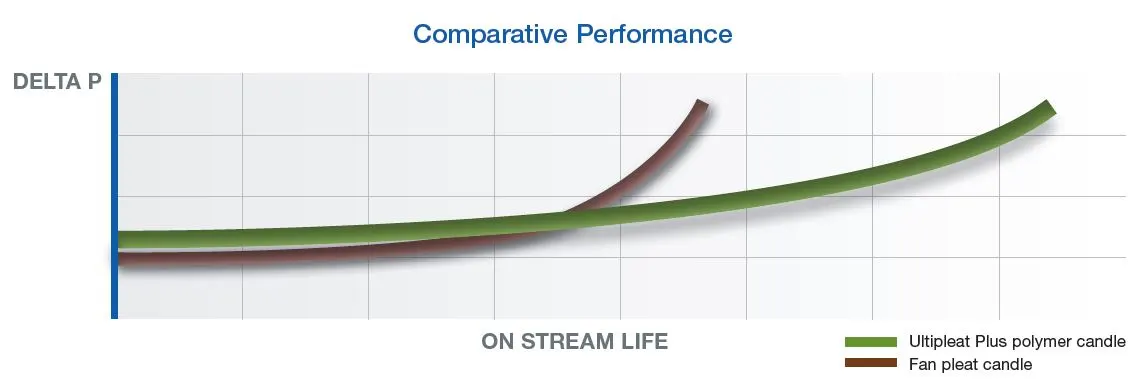

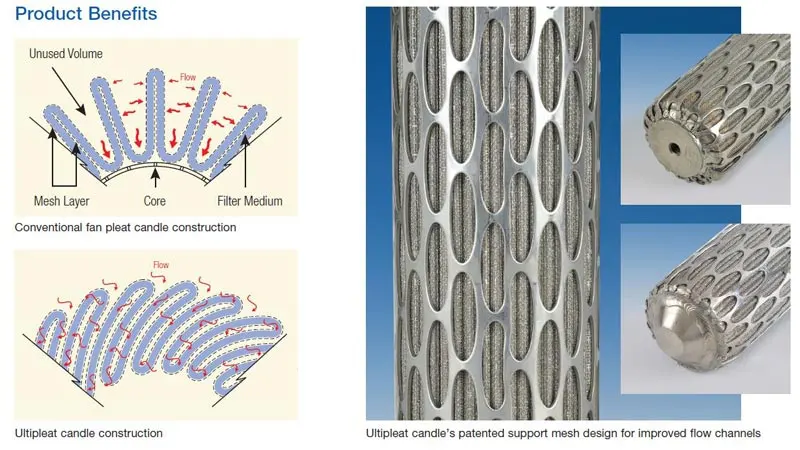

Pall’s new Ultipleat Plus metal fiber filters employ Pall Corporation’s unique “Laid Over Pleat” technology to offer extended service life to your process applications. This upgraded version of the Ultipleat candle element also utilizes a patented support mesh design for improved flow channels allowing for a much lower resistance to flow. The customizable filter elements can either be retrofitted to an existing housing or can be specially designed for the needs of your specific application. The Ultipleat Plus is great for applications with high temperature and high dirt-holding capacity requirements and for those that are looking to extend the on-stream life of their filters.
7 μm and up
128 bard (1850 psid)
330°C (626°F)
304, 304L, 316, 316L
Outside Diameters: 1.375” – 2.75” Lengths: 26 inch (66 cm) Sections
Ultipleat Plus candles are recommended for polymer melt applications where fine filtration is required and where an increase in on-stream life is desired. They are also beneficial for applications where a lower residence time and/or a smaller residence time distribution is needed. Ultipleat Plus candles can be used with a variety of polymers, including, but not limited to:
The Pall HLP6 purifier has a newly redesigned vacuum tower which allows for very efficient water removal. It is designed to remove 100% of free gases and water (under steady state conditions), and up to 80% of dissolved gases and water. It is also designed to remove solid contaminants, with efficiency of 99.9% (down to 3 microns).
316/316L SST; 310 SST; Inconel4 600; Hastelloy5 X; Hastelloy5 C-2000; Haynes5 HR-1605
4 Inconel is a registered trademark of Special Metals Corporation.
5 Hastelloy, Haynes, and HR-160 are registered trademarks of Haynes International, Inc.
