The Pall Membralox GP membrane is designed for optimum soluble macromolecules transfer across the microfiltration membrane.

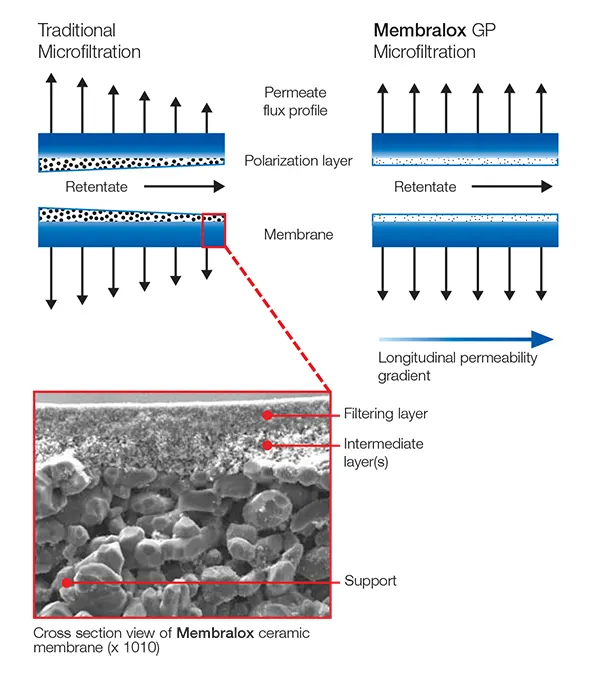

In conventional microfiltration conditions, the natural pressure drop creates asymmetric transmembrane pressure (TMP) from the inlet to the outlet of the flow channel.
To correct this TMP decrease, Membralox GP membranes have a longitudinal permeability gradient built into the support structure without modification of the filtration layer. This design ensure a stable microfiltration regime all along the membrane.
1The membranes based on high purity alumina are certified for use in contact with food fluids by Commission Directive 2005/31/EC. All membrane components are made from materials that our suppliers state meet the requirements for food contact use: Alumina and titania are GRAS. Zirconia layers on alumina support are listed in 21 CFR Sect.177.2910.

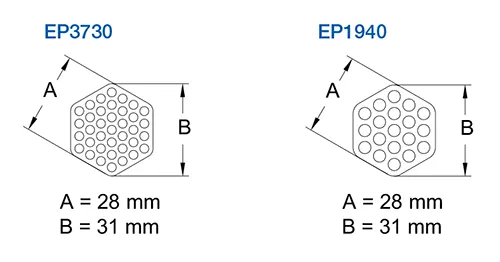

Other pore sizes and calibration available on request.
Construction of wetted materials : 316L SS, ceramic, EPDM, FPM
Construction of wetted materials : 316L SS, ceramic, PTFE, FPM

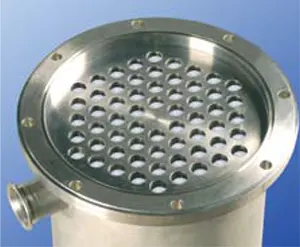

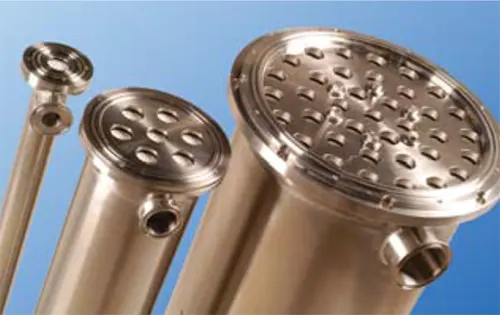

The limits of use of Membralox modules are determined mainy by type of housing or gasket materials. Based on valuable pilot and test data, our Scientific and Laboratory Services can provide advice in selecting the best membrane and module configuration to match your process requirements.
Please fill out the form below with your details and message, and we'll get back to you as soon as possible.
Product Type: Filter Capsules
Segment: Photovoltaics, Semiconductor
