SUPRApak™ SW Series Module–L (16”)

Overview
Applications
Specifications
Ordering Information
Order Products
BROCHURE
DOWNLOAD
COST
Estimation

For High Throughput Depth Filtration in Closed Systems

Developed from traditional depth filtration technology, SUPRApak modules efficiently combine the filtration mechanisms of surface filtration, depth filtration and adsorption. Highly unique to their design is an entirely new flow configuration, based on the “edge flow” principle.

Seitz® filter sheet material is wrapped around a central, permeable core. Feed and filtrate channels provide a fluid flow path resulting in maximum utilization of the sheet material, to provide highly efficient contaminant removal and a cost-effective closed system alternative to flat sheet filtration.

Features Benefits
Flow configuration based on “edge flow” principle
  • Up to 6 times higher throughput compared to classical sheet filtration, resulting in longer process uptimes¹
  • Increased adsorption capability and excellent filtrate quality

Closed filtration system
  • Increased process safety and product quality
  • No drip losses
  • Minimal operator exposure to process fluids

Drainable, low hold-up volume assembly
  • Higher product yield; lower cleaning costs

Available in multiple grades and sizes
  • Suitable for a variety of applications

High filtration capacity in compact design
  • Small footprint

Simple, quick installation and servicing
  • Reduced labor and maintenance costs

1Depending on application and product selection.

Quality

  • Filter sheets produced in a controlled environment
  • Manufactured according to ISO 9001:2015 certified Quality Management System

Main Components2

Sheet Material

Sheet material: SW 5200,

SW 5300, SW 5500, SW 5700,

SW 5900, SW 7000, SW 7100, SW 7300

 Cellulose, Diatomaceous Earth (DE, Kieselguhr) Perlites
Sheet material: SW 7700 Cellulose
Center Core Polypropylene (20% talc-filled)
Sealing line Polypropylene

Applications

Typical applications are found in many fluids in the food and beverage industry.

Final Filtration Enzyme solutions, sweeteners
Polishing Filtration Sweeteners, beer, wine, flavors, distilled spirits, thin liquor gelatin, yeast extract
Clarifying Filtration Beer, wine, enzymes, distilled spirits, flavors, thin liquor gelatin, polyols, edible oils
Coarse Filtration

General particle removal, wax removal in edible oils

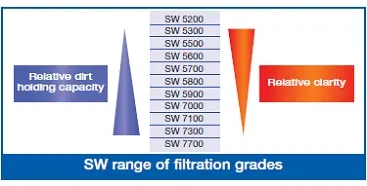

SW Range of Filtration Grades

Specifications

Technical Information
Operating Characteristics in Compatible Fluids3

Module Size Grade Max. Operating Temperature
SUPRApak L SW 5200-SW 7300 75 °C (167 °F) / 8 hours4
SUPRApak L SW 7700 ambient

3Compatible fluids are those which do not adversely affect the filter materials of construction.

4Laboratory tests up to 8 hours exposure. Actual field experience shows substantially longer resistance to high temperatures. For continuous hot fluid applications over 40° C (104° F), a stainless steel support core is required. Please see SUPRApak housing data sheet for information.

Operating Guidelines

Field experience shows that maximum achievable differential pressures vary with the applications and product selection. They are determined by monitoring filtrate quality, and are influenced by several factors. Please contact Pall for details, and refer to SUPRApak module instructions for use.

Nominal Weight and Typical Ash Content

Module Dry Weight Wet Weight Ash Content5

SUPRApak L

(SW 5200-SW 7300)

11-12 kg

(24.2-26.4 lbs)

25-30 kg

(55-66 lbs)

 40-54%

SUPRApak L

(SW 7700)

7.5 kg

(16.5 lbs)

25-30 kg

(55-66 lbs)

 < 2%

5 These figures are determined on typical finished articles. Values differ for individual SW grades. Ash values for the filter sheets in individual batches are available on request.

Sanitization6

Method Temperature Max. Differential
Pressure (forward)		 Time/Cycles7
Hot Water 85 °C (185 °F)  1.5 bard (21.7 psid) 20 cycles @ 20 min each

6>SW 7700 is not designed for sanitization with hot water.

7The actual time required may vary as a function of the process conditions. Laboratory tests were carried out up to 10 cycles. Actual field experience shows more cycles are achievable, coupled with proper filtrate quality monitoring.

Rinsing8

Module Size Rising Volume/Module Recommended Flow Rate
SUPRApak L 340 liters (90 US gal) 1.5 times filtration flow rate

8Depending on the application, rinsing with cold or warm water in a forward flow direction is recommended prior to filtration.

SW 7700 Modules

Due to the high permeability of SUPRApak SW 7700 modules, initial clean water differential pressures at the typical flux rates used for these modules are negligibly low and influenced by measurement accuracy.

Nominal Dimensions

Code Height External Diameter
L 250 mm (9.8”) 415 mm (16.3")

Ordering Information

This information is a guide to the part number structure and possible options. For availability of specific options and housing details.

Part number nomenclature:

SUPRApak SW [Table 1] LW

Example part number: SUPRApak SW 5200 LW

See bold reference code in table.

Table 1: Grade
Code
5200
5300
5500
5700
5900
7000
7100
7300
7700

Each SUPRApak L module is supplied with a separate polypropylene ring for use in between adjacent modules.

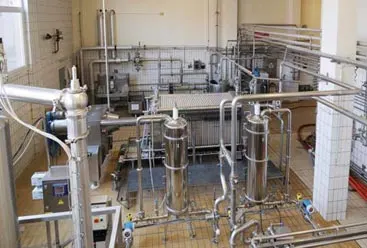

Figure 1: At one installation at a brewery, the use of SUPRApak technology saves 68% on operating costs, compared to classical sheet filtration.

Many applications in the food and beverage industry are ideally suited to the use of SUPRApak technology, resulting in significant commercial and technical advantages.

Order Products

SUPRApak™ Depth Filter Module, SW 5900 LW

  • Product ID: 5302871
  • Unit of Measure: 1/EA
  • Min Order Qty: 1
  • Media Material: Kieselguhr, Perlite and Cellulose Fibers
  • Nominal Outer Diameter: 16 in
  • Nominal Length: 10.7 in
  • Maximum Differential Pressure: 21.75 psid
  • Filter Area: 86.1 ft²
  • Hot Water Sanitization: 185 °F
Enquiry Now

SUPRApak™ Depth Filter Module, SW 5700 LW

  • Product ID: 5302870
  • Unit of Measure: 1/EA
  • Min Order Qty: 1
  • Media Material: Kieselguhr, Perlite and Cellulose Fibers
  • Nominal Outer Diameter: 16 in
  • Nominal Length: 10.7 in
  • Maximum Differential Pressure: 21.75 psid
  • Filter Area: 86.1 ft²
  • Hot Water Sanitization: 185 °F
Enquiry Now

SUPRApak™ Depth Filter Module,SW 5500 LW

  • Product ID: 5302803
  • Unit of Measure: 1/EA
  • Min Order Qty: 1
  • Media Material: Kieselguhr, Perlite and Cellulose Fibers
  • Nominal Outer Diameter: 16 in
  • Nominal Length: 10.7 in
  • Maximum Differential Pressure: 21.75 psid
  • Filter Area: 86.1 ft²
  • Hot Water Sanitization: 185 °F
Enquiry Now

SUPRApak™ Depth Filter Module, SW 7100 LW

  • Product ID: 5302872
  • Unit of Measure: 1/EA
  • Min Order Qty: 1
  • Media Material: Kieselguhr, Perlite and Cellulose Fibers
  • Nominal Outer Diameter: 16 in
  • Nominal Length: 10.7 in
  • Maximum Differential Pressure: 21.75 psid
  • Filter Area: 86.1 ft²
  • Hot Water Sanitization: 185 °F
Enquiry Now

SUPRApak™ Depth Filter Module, SW 7700 LW

  • Product ID: 5303103
  • Unit of Measure: 1/EA
  • Min Order Qty: 1
  • Media Material: Cellulose
  • Nominal Outer Diameter: 16 in
  • Nominal Length: 10.7 in
  • Maximum Differential Pressure: 21.75 psid
  • Filter Area: 86.1 ft²
  • Hot Water Sanitization: 185 °F
Enquiry Now

SUPRApak™ Depth Filter Module, SW 7000 LW

  • Product ID: 5302741
  • Unit of Measure: 1/EA
  • Min Order Qty: 1
  • Media Material: Kieselguhr, Perlite and Cellulose Fibers
  • Nominal Outer Diameter: 16 in
  • Nominal Length: 10.7 in
  • Maximum Differential Pressure: 21.75 psid
  • Filter Area: 86.1 ft²
  • Hot Water Sanitization: 185 °F
Enquiry Now
