AETE Filter Housing

BROCHURE

COST

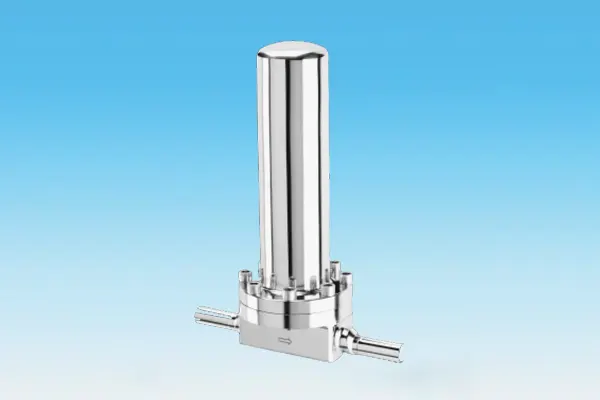

The AETE series filter housings are designed for the filtration of inert, nontoxic gas with flows up to 250 scfm/150 m³⁄ h.

Typical applications include Ar, N2, He, and CDA
Two bowl lengths available
Flow rates up to 250 scfm/150 m³⁄ h
High pressure rating
Cleaned and packaged in a cleanroom
Accepts low pressure drop Code 7 cartridge (due to larger core diameter)

Specifications

Materials

316L electropolished stainless steel
16 μin / 0.4 μm R_a internal surface finish, or 10 μin / 0.25 μm R_a
Fluorocarbon seal

Connections

1 in. Butt Weld (0.065 in. / 1.65 mm wall)

Bowl Sizes

10 in. / 254 mm, or 20 in. / 508 mm

Element Adapter

Code 7 (226 double O-ring bayonet lock, finned element)

Closure

Bolted Closure

Operating Conditions

Design Pressure 580 psig/40 bar
Design Temperature 194 °F / 90 °C

Leak Rating

Helium Leak Tested to 1x10^-7 atm•cm³/s

Performance

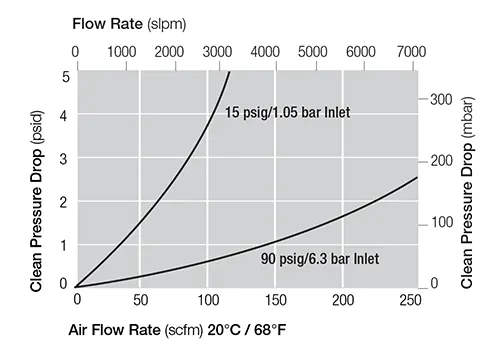

Pressure Drop vs. Gas Flow Rate

Additional Information

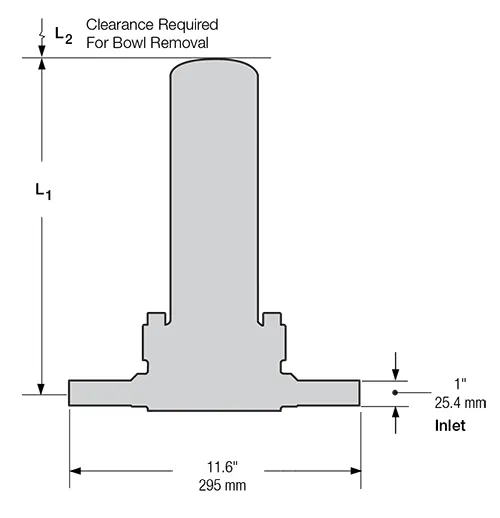

Dimensions

Ordering Information

Part Number	Cartridge Length (in. / mm)	L₁ (in. / mm)	L₂ (in. / mm)	Surface Finish (R_a) (μin / μm)
AETE11G7039-16	10 / 254	14.6 / 370	12.2 / 310	16 / 0.4
AETE12G7039-16	20 / 508	24.4 / 620	22.0 / 560	16 / 0.4
AETE11G7039-10	10 / 254	14.6 / 370	12.2 / 310	10 / 0.25
AETE12G7039-10	20 / 508	24.4 / 620	22.0 / 560	10 / 0.25

Unit conversion: 1 bar = 100 kilopascals
