ChamberKleen™ Diffusers - NW40/NW50

BROCHURE

COST

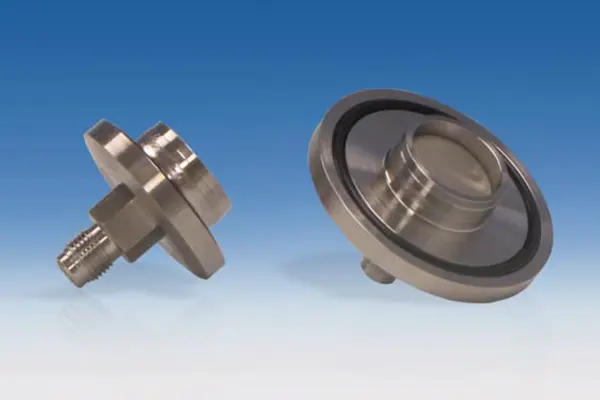

ChamberKleen diffusers are ideally suited for vent applications on load lock interfaces or other vacuum chambers where large volumes of gas are flowing in a short amount of time.

Features

Reduced turbulent flow during venting of process chambers
High differential pressure capability
316L stainless steel housing
Filters wide variety of gases
Cleanroom manufactured and packaged

Specifications

Materials	316 L SS filter and housing ≤ 0.51 μm / 20 μin R_a wetted surface finish Fluorocarbon o-ring
Particle Removal Rating	≥ 3 nm Particle contribution above background: particle / (m³ or ft³) ≥ 0.01 μm at 75 slpm
Connections	¹/₄" Gasket seal inlet (VCR1 or compatible) I40: NW40 ISO vacuum flange* I50: NW50 ISO vacuum flange* *Compatible with standard ISO bulkhead clamps
Maximum Vent-Up Cycles	100,000 cycles at maximum differential pressure: 0.7 MPa @ 20°C / 105 psid @ 68°F
Operating Conditions	Maximum allowable differential pressure 0.7 MPa @ 20°C / 105 psid @ 68°F Maximum operating temperature: 100°C / 212°F (o-ring limited)
Design Flow Rate	75 slpm

Performance

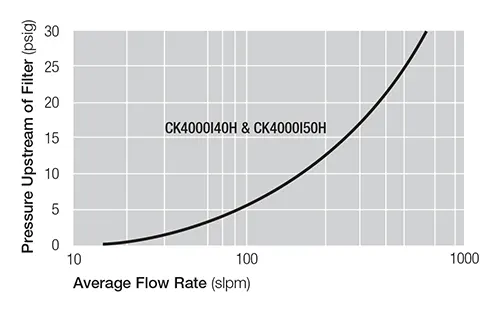

Pressure Drop vs. Gas Flow Rate

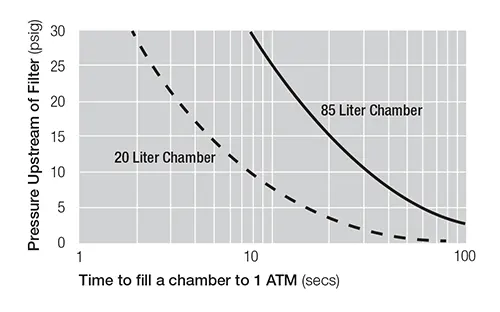

Pressure vs. Chamber Fill Time

Additional Information

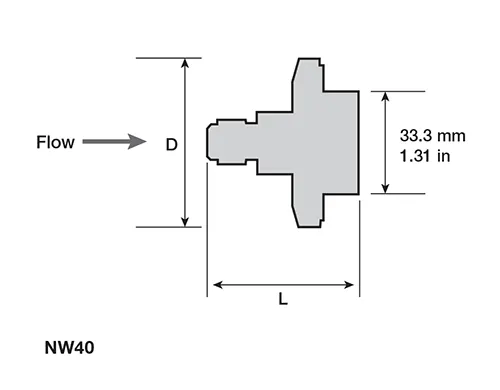

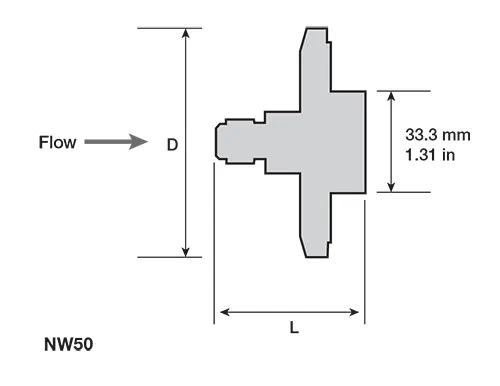

Dimensions

Ordering Information

Part Number	Description	Nominal Diameter (D) (mm / in.)	Nominal Length (L) (mm / in.)
CK4000I40H	NW40 ISO vacuum flange	55 / 2.16	49 / 1.93
CK4000I50H	NW50 ISO vacuum flange	75 / 2.95	49 / 1.93
