Emflon® PF Filter (Gas Filtration)

BROCHURE

COST

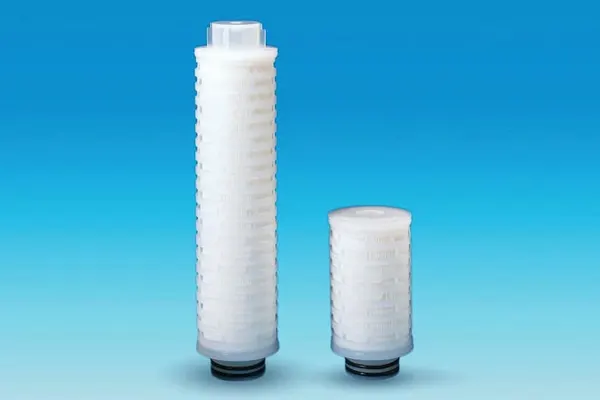

The Emflon^®PF filter is an all fluoro–polymer pleated filter designed for 1.5 nm filtration of bulk aggressive process gases.

All fluoro-polymer construction
Available in 5 in., 10 in., 20 in., and 30 in. configurations
High temperature and pressure capabilities
Optimized cartridge design
High flow rates vs. differential pressure
Manufactured in a cleanroom environment
100% integrity tested

Specifications

Components	Materials
Filter Medium	PTFE
Media Support	PTFE
Core, Cage and End caps	PFA
Sealing Methods	Melt seal
O-ring	FEP encapsulated fluoroelastomer
Configurations	AB1	AB2	AB04
Nominal Filter Areas	0.56 m² / 6 ft²	1.1 m² / 12 ft²	0.24 m² / 2.6 ft²
Nominal Length	254 mm / 10 in	508 mm / 20 in	102 mm / 4 in
Diameter	70 mm / 2.75 in
O-ring Size / End Caps	Code 3 (222 double O-ring / flat end) Code 15 (226 double O-ring bayonet lock / flat end)
Removal Ratings	1.5 nm
Maximum Operating Temperature	185 ˚C / 365 ˚F
Maximum Forward Differential Pressure	0.69 MPa @ 50 ˚C / 100 psid @ 120 ˚F 0.41 MPa @ 110 ˚C / 60 psid @ 230 ˚F 0.24 MPa @ 170 ˚C / 35 psid @ 335 ˚F

Performance

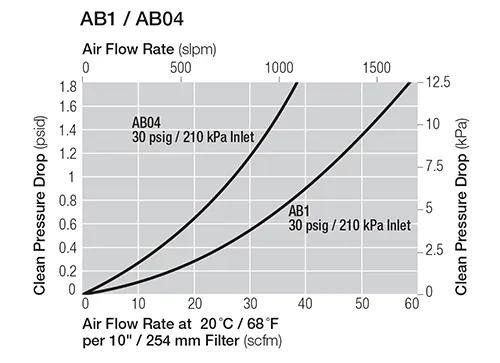

Pressure Drop vs. Gas Flow Rate

Ordering Information

AB [1][2][3] E [4]

Table 1

Code	Cartridge Length¹ (Nominal)
1	254 mm / 10 in
2	508 mm / 20 in
04	102 mm / 4 in

Table 2

Code	Removal Ratings
F002	1.5 nm

Table 3

Code	O-ring Specifications
3	AS568A-222
15	AS568A-226

Table 4

Code	O-ring Material¹
H1	FEP Encapsulated Fluoroelastomer

¹ Other length and O-ring material options available.

Representative example part numbers

AB04F0023EH1
AB1F00215EH1
AB2F00215EH1
