Gaskleen® Light Series Filter Assemblies

Home
Process Gas Filtration
Gaskleen® Light Series Filter Assemblies

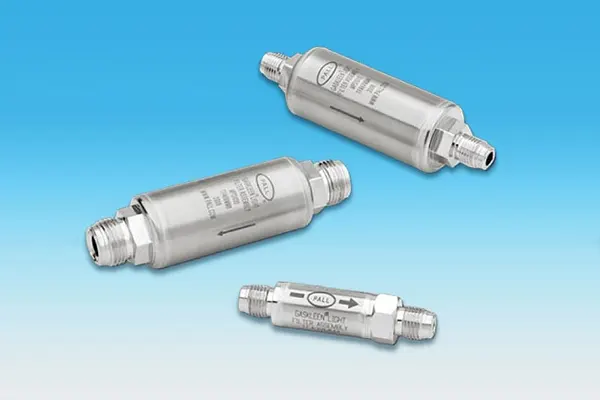

Gaskleen Light filter assemblies have been designed specifically to provide the high-purity gas filtration required in solar cell and liquid crystal display manufacturing. The assemblies are available in two styles: the TFA3 has a high-flow, compact design, for use where space is limited; the TFA6 is designed for applications where higher flow capacity is desired.

316L stainless steel electropolished housing
All-fluoro-polymer filter cartridge
High temperature and pressure capabilities
100% integrity tested
Cleanroom manufactured and packaged
100% helium leak tested
Minimized packaging reduces waste while maintaining product purity

Products in this datasheet may be covered by one or more patents, including US 5,510,026.

Specifications

Materials

Medium: PTFE
Support:
- TFA3: None
- (S)TFA6: fluoro-polymer
Core and end caps: PFA
O-ring:
- TFA3: FEP encapsulated fluorocarbon
- (S)TFA6: None

Removal Rating1

1.5 nm

Connections

¹⁄₄ in., ¹⁄₂ in. or ³⁄₄ gasket seal (VCR² or compatible)
¹⁄₄ in., ³⁄₈ in. or ¹⁄₂ in. compression fittings

Operating Conditions

Maximum operating pressure
- TFA3: 20.7 MPa at 122 °C / 3,000 psig at 250 °F
- (S)TFA6: 5.2 MPa at 140 °C / 750 psig at 284 °F
Maximum allowable forward differential pressure
- TFA3: 0.6 MPa at 21 °C / 80 psid at 70 °F
- (S)TFA6: 0.7 MPa at 20 °C / 100 psid at 68 °F
Maximum allowable reverse differential pressure
- TFA3: 0.3 MPa at 21 °C / 50 psid at 70 °F
- (S)TFA6: 0.3 MPa at 20 °C / 50 psid at 68 °F
EU Pressure Equipment Directive:
- TFA3: Assemblies have been evaluated and designed using SEP per the European Union's Pressure Equipment Directive 97/23/EC and are not CE marked.
- (S)TFA6: Assemblies have been evaluated for compliance with the European Union's Pressure Equipment Directive 97/23/EC and are CE marked.

Leak Rating

100% helium leak tested to 10^-9 atm-cm³/s

1 Particle rating is based on laboratory testing with NaCl aerosol.
2 VCR is a registered trademark of Swagelok Company.

Performance

Pressure Drop vs. Gas Flow Rate

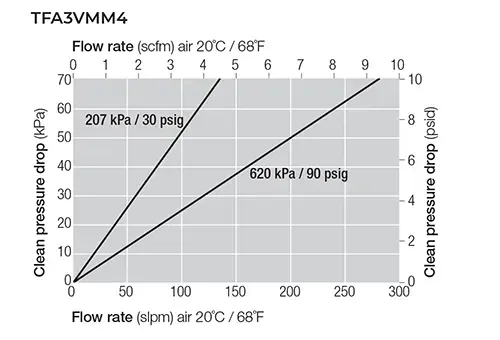

TFA3VMM4

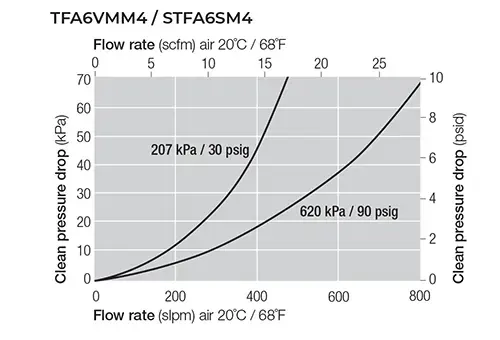

TFA6VMM4 / STFA6SM4

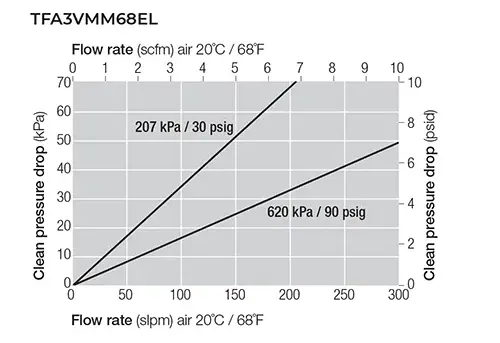

TFA3VMM68EL

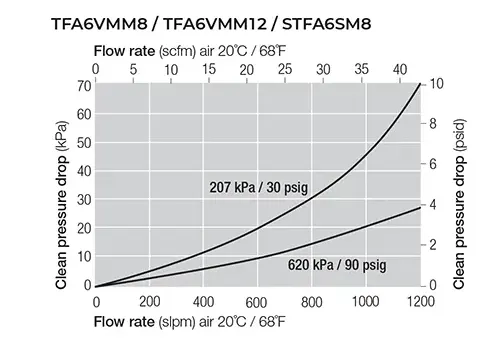

TFA6VMM8 / TFA6VMM12 / STFA6SM8

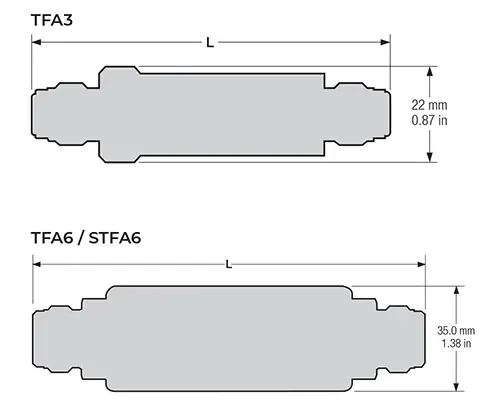

Dimensions

Ordering Information

Part Number	Description	Nominal Length (L) (mm / in.)
TFA3VMM4	¹⁄₄ in. gasket seal, (VCR or compatible) male / male	84 / 3.31
TFA3VMM68ELBJ	³⁄₈ or ¹⁄₂ in gasket seal, (VCR or compatible) male / male	127 / 5
TFA6VMM4	¹⁄₄ in. gasket seal, (VCR or compatible) male / male	127 / 5
TFA6VMM8	¹⁄₂ in. gasket seal, (VCR or compatible) male / male	127 / 5
TFA6VMM12	³⁄₄ in. gasket seal, (VCR or compatible) male / male	140 / 5.5
STFA6SM4	¹⁄₄ in. compression seal, (Swagelok or compatible) male / male	113 / 4.4
STFA6SM6	³⁄₈ in. compression seal, (Swagelok or compatible) male / male	118 / 4.6
STFA6SM8	¹⁄₂ in. compression seal, (Swagelok or compatible) male / male	119 / 4.7

Unit conversion: 100 kilopascals = 1 bar
