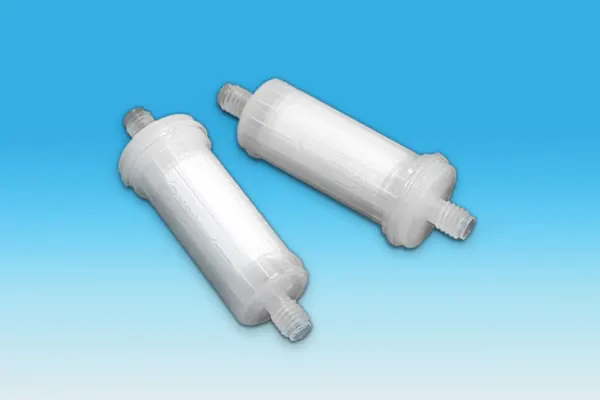

Micro Kleen-Change® Filter Assembly (Gas Filtration)

Home
Process Gas Filtration
Micro Kleen-Change® Filter Assembly (Gas Filtration)

The Micro Kleen-Change^®gas Filter Assembly is designed for low pressure ultra high purity, point-of-use gas applications. The all fluoro-polymer assembly eliminates metal components and elastomer seals by welding an all fluoro-polymer element into an all PFA housing.

All fluoro-polymer element
No elastomeric seals
Wide range of chemical compatibility
Ideally suited for use in corrosive environments/locations
Eliminates metal components

Cleanroom manufactured and packaged
100% integrity tested

Recommended Applications

Low pressure nitrogen
Lithography track tools

Specifications

Materials

Media: PTFE
Shell, core, and end caps: PFA440HP

Removal Rating

≥ 1.5 nm

Filter Area

13.5 cm² / 2.1 in²

Connections

¹⁄₈ in. Swagelok,¹ Male/Male

Operating Conditions

Maximum operating pressure: 58 psi @ 77 °F / 4 bar @ 25 °C

Packaging

Double bagged
N₂ purged

¹ Swagelok is a registered trademark of Swagelok Co.

Performance

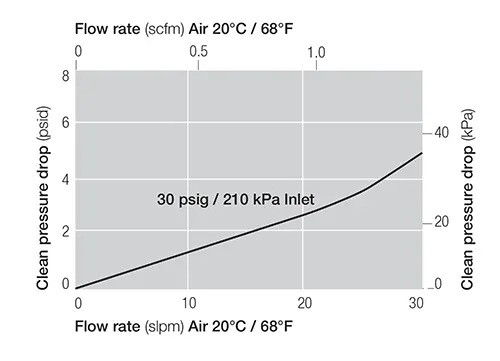

Pressure Drop vs. Gas Flow Rate

Additional Information

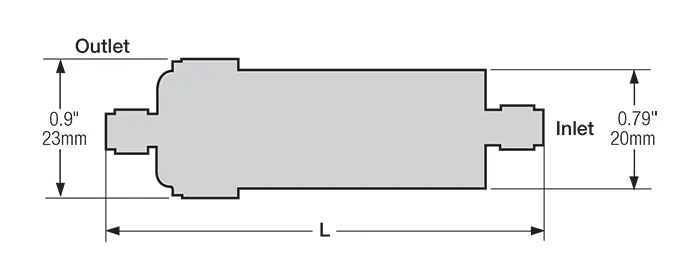

Dimensions

Ordering Information

Part Number	Description	Length (L) (in. / mm)
GDF3101SW2	¹⁄₈ in. Swagelok fitting, Male inlet/outlet	2.9 / 73

Unit conversion: 1 bar = 100 kilopascals
