Mini Kleen-Change® Filter Assembly (Gas Filtration)

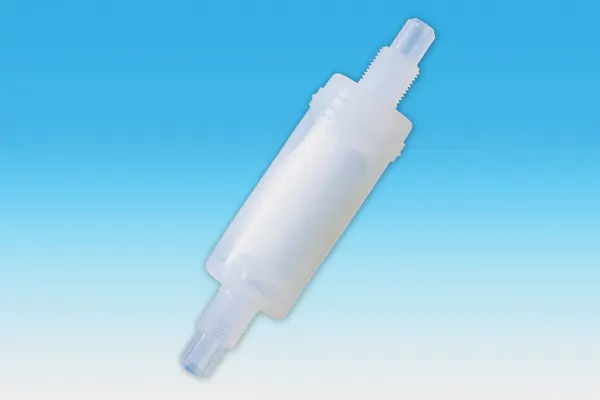

The Pall Mini Kleen-Change^®Filter Assembly is designed for low pressure ultra high purity point-of-use gas filtration applications. The unique all fluoro-polymer assembly eliminates metal components and elastomer seals by welding an all fluoro-polymer element into an all PFA housing.

All fluoro-polymer element
No elastomeric seals
Wide range of chemical compatibility
Ideally suited for use in corrosive environments/locations
Eliminates all metal components
Cleanroom manufactured and packaged
100% integrity tested

Specifications

Materials

Molded PFA 440 HP housing and fittings

All fluoro-polymer filter element

Media: PTFE
Support: FEP bonded PTFE
Core and endcaps: PFA 440 HP

Removal Rating

≥ 1.5 μm

Filter Area

320 cm²/0.344 ft²

Connections

Inlet/Outlet
- ³⁄₈ in. Flaretek,¹ Male/Male
- ¹⁄₄ in. Male Flaretek, Male/Male

Operating Conditions

Maximum Operating Pressure:
- 60 psig @ 77 °F/4.1 bar @ 25 °C
- 30 psig @ 176 °F/2 bar @ 80 °C
Maximum Reverse Differential Pressure: 50 psid @ 70 °F/3.4 bar @ 21 °C

Packaging

Double bagged
N₂ purged

¹Flaretek is a trademark of Entegris

Performance

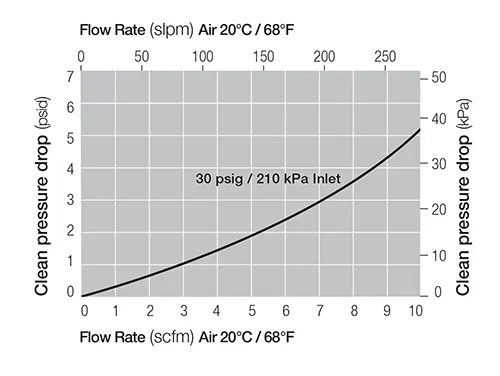

Pressure Drop vs. Gas Flow Rate

Additional Information

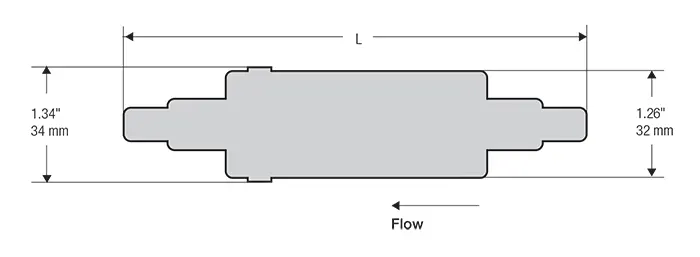

Dimensions

Ordering Information

Part Number	Description	Length (L) (in. / mm)
GDF6406E5	³⁄₈ in. Flaretek, Male Inlet/Outlet	5.34 / 135.7
GDF6404E5	¹⁄₄ in. Flaretek, Male Inlet/Outlet	5.1 / 129.7

Unit conversion: 1 bar = 100 kilopascals
