PFA Gaskleen® 6101 Series Filter Assembly

BROCHURE

COST

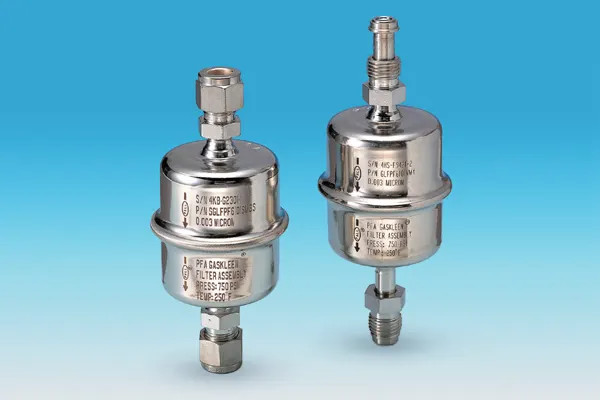

The PFA-Gaskleen® 6101 Series Filter Assembly is specifically designed for ≥ 1.5 nanometer (0.0015 μm) filtration of oxygen and specialty gases.

316L stainless steel electropolished housing
All fluoro-polymer element
Wide range of chemical compatibility
High temperature and pressure capabilities
Available in both standard and shortened version
Wide variety of fitting options available
Compact size (2.2 in. / 56 mm dia.) for ease of installation
100% integrity tested
Cleanroom manufactured and packaged
100% helium leak tested

Specifications

Filter Medium	PTFE
Core and end caps	PFA 440HP
O-ring	FEP encapsulated fluoroelastomer
internal surface finish	≤ 25 μin / 0.64 μm R_a
Housing	Electropolished 316L stainless steel Housing material meets or exceeds VIM / VAR specifications
Removal Rating	≥ 1.5 nm
Filter Area	< 232 cm² / 0.25 ft²
Connections	1⁄4" Gasket Seal, Male (VCR1 or compatible)
	1⁄4" Compression Seal (Swagelok1 or compatible)
	3⁄8" Gasket Seal, Male (VCR or compatible)
	3⁄8" Compression Seal (Swagelok or compatible)
Leak Rating	100% helium leak tested to 10^-7 atm•cm³/s
Leak Rating	Design validated to 10^-9 atm•cm³/s
Maximum Operating Pressure	750 psig @ 250 °F / 52 bar @ 121 °C
Maximum Forward Differential Pressure	100 psid @ 70 °F / 7 bar @ 21 °C
Maximum Reverse Differential Pressure	50 psid @ 70 °F / 3.4 bar @ 21 °C
Packaging	Double bagged
	Outer bag: aluminized mylar
	Inner bag: polyethylene
	N₂ purged

¹ VCR and Swagelok are trademarks of Swagelok Co.

Performance

Pressure Drop vs. Gas Flow Rate

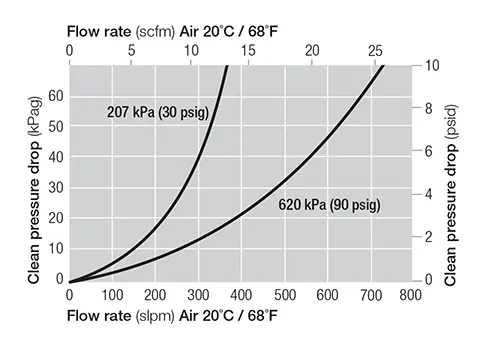

Connection Size: .25 in.

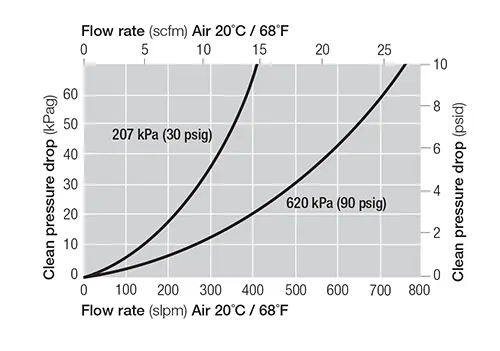

Connection Size: .375 in.

Additional Information

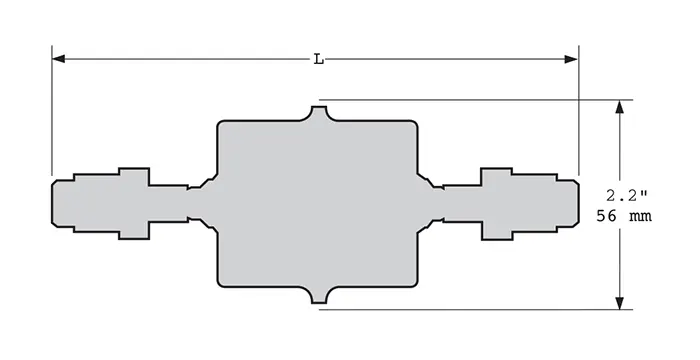

Dimensions

Ordering Information

Part Number	Description	Length (L) (in. / mm)
GLFPF6101VM4	PFA Gaskleen, ¹⁄₄ in. Gasket Seal (VCR or Compatible) Male/Male	5.56 / 141
GLFPF6101SM4S	PFA Gaskleen, ¹⁄₄ in. Compression Seal (Swagelok or Compatible) Male/Male	5.56 / 141
GLFPF6101SM6S	PFA Gaskleen, ³⁄₈ in. Compression Seal (Swagelok or Compatible) Male/Male	5.81 / 148
GLFPF6101VM6/8	PFA Gaskleen, ³⁄₈ or ¹⁄₂ in. Gasket Seal (VCR or Compatible) Male/Male	5.81 / 148
SGLFPF6101VM4	Short PFA Gaskleen, ¹⁄₄ in. Gasket Seal (VCR or Compatible) Male/Male	4.94 / 125
SGLFPF6101VM6/8M	Short PFA Gaskleen, ³⁄₈ or ¹⁄₂ in. Gasket Seal (VCR or Compatible) Male/Male	5.00 / 127
SGLFPF6101SM4S	Short PFA Gaskleen, ¹⁄₄ in. Compression Seal (Swagelok or Compatible) Male/Male	4.19 / 106

Unit conversion: 1 bar = 100 kilopascals
