Profile® II Filters

Overview
Specifications
Technical Information
Ordering Information
BROCHURE
DOWNLOAD
COST
Estimation

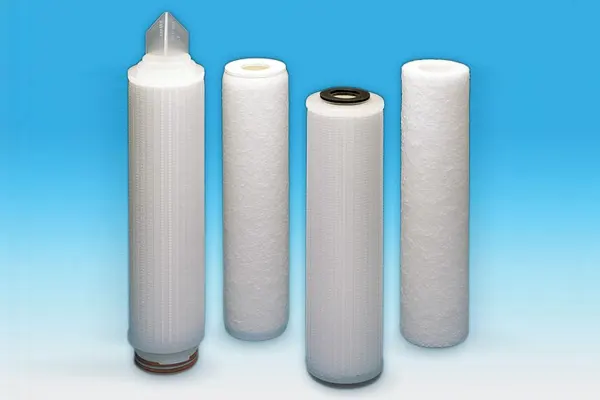

Profile II filter cartridges are high efficiency depth filters designed for superior clarification and particle removal in food and beverage applications.

Description

Constructed of melt blown polypropylene media, Profile II cartridges feature a fixed fiber matrix with graded pore structure, created by continuous intertwined fibers of varying diameter.

These features are the key to this filter’s superior removal performance and high contaminant holding capacity.

With coarsest pore sizes in the outermost layers and decreasing pore sizes towards the innermost layers of the cartridge, pre-filtration and fine filtration can occur within the same cartridge.

Profile II filter cartridges provide a removal efficiency of >99.98% at the stated micron rating in compatible liquids with highly consistent filtration performance.

Specifications

Features and Benefits

Features Benefits
Fixed fiber matrix resulting in highly stable pore structure
  • Superior removal efficiency
  • Consistent filtrate quality
  • No media migration or unloading of contaminants
Continuous pore size variation, enabling pre-and fine filtration in the same cartridge
  • High dirt holding capacity and extremely long service life
  • Economical cost per filtered volume
  • Lower disposal costs
All polypropylene construction without adhesives, binders or surfactants
  • Broad chemical compatibility, suitable for use in a variety of fluids
Available in multiple configurations
  • Easy to integrate into existing production lines

Quality

  • Cartridges produced in a controlled environment
  • Manufactured according to ISO 9001:2008 certified Quality Management System

Materials of Construction

Filter Medium Benefits
Fixed fiber matrix resulting in highly stable pore structure
  • Superior removal efficiency
  • Consistent filtrate quality
  • No media migration or unloading of contaminants

Technical Information

The technical information provided is based on controlled laboratory tests done on typical production filters at the conditions described, unless otherwise indicated. Actual operating conditions may affect the filter’s performance.

Ordering Information

Maximum Differential Pressure2 Operating Temperature
4 bard (60 psid) 30 °C (86 °F)
3.4 bard (50 psid) 50 °C (122 °F)
2 bard (30 psid) 70 °C (158 °F)
1 bard (15 psid) 82 °C (180 °F)
0.3 bard (5 psid)3 125 °C (257 °F)

1 Fluids which do not swell, soften or adversely affect any of the filter components
2 In forward direction. Recommended change-out differential pressure is 2.4 bard (35 psid), provided the maximum differential pressure (based on temperature) is not exceeded.
3 AB style only

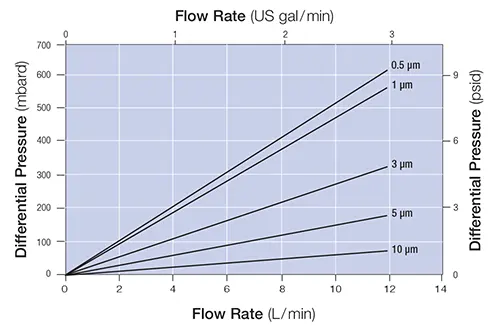

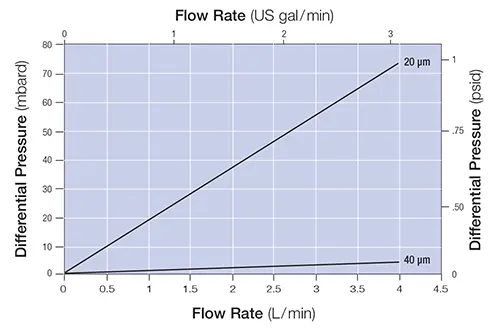

Typical Flow Rates4

4 Typical initial clean delta p per 254 mm (10 inch) cartridge, water at 20 °C (68 °F). For liquids with viscosity greater than 1 cP, multiply the delta p by the viscosity

Ordering Information

This information is a guide to the part numbering structure and possible options. For availability of specific options and housing details, please contact Pall

Table 1: Nominal Length

Code Length
AB, RF and RMF Styles
1 254 mm (10")
2 508 mm (20")
3 762 mm (30")
4 1016 mm (40")
RF and RMF Styles only
29 736.6 mm (29")
RF Style only
14 25.4 mm (1")
05 127 mm (5")
09 228.6 mm (9")
39 990.6 mm (39")

Table 2: Removal Rating6

Code
AB Style RF, RMF Style Rating (μm) @ 99.98% Efficiency (ß-5000) Rating (μm) @ 90% Efficiency (ß-10)
005 005 0.5* <0.5*
010 010 1 <0.5*
030 030 3 <1*
050 050 5 2
100 100 10 6.5
n.a. 200 20 10
n.a. 400 40 20

6 Profile II filter cartridge liquid retention ratings up to 20 micron are based on a modified OSU-F2 single pass test in an aqueous medium. Oil is used as the test medium for the 40 micron grade. Asterisks indicate extrapolated values.

Table 3: Adaptor

Code Description
3 SOE - single open end with flat closed end and external 222 O-rings
7 SOE - single open end with fin end, 2 locking tabs and external 226 O-rings
8 SOE - single open end with fin end and external 222 O-rings
28 SOE - single open end with fin end, 3 locking tabs and external 222 O-rings

Table 4: O-ring Seal7

Code Description
H Silicone Elastomer
J Ethylene Propylene Rubber

7 AB style configurations only
