Compact Filter Capsule with Ink-Jet-Specific Features
The MAC filter is designed to meet the
digital printing OEM’s needs with several
key features: a compact form to minimize
internal ink volume and waste, an optional
UV-resistant housing to prevent ink curing,
and an anti-roll design to reduce ink spillage.
Dual-Filtration Design
The MAC filter with pleated media features
an integral high-performance last chance
filter for the assurance of maximum
cleanliness without a sacrifice in pressure
loss.
Robust Design and Construction
The MAC filter features a robust, thick-wall
construction with integrally molded
connectors to serve the needs of OEMs
using solvent-based inks. This premium
construction, in combination with highcapacity filter media will yield a long
service life.

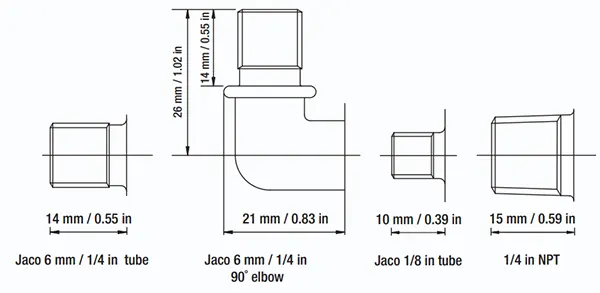

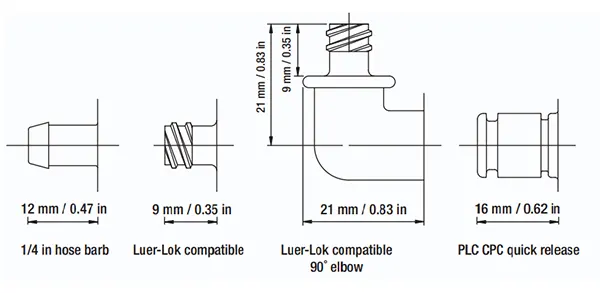

User-Friendly Connector Options
A wide range of connector options are
available on the MAC filter. For fast, clean
filter changes, CPC* quick-release and
standard Luer-Lok* compatible connections
are available. In systems that use rigid
tubing, two available sizes of Jaco* fittings
are ideal compression fitting options. In
addition, other standard connection types
are available, such as NPT and hose barb.
All-Polymeric Capsule Construction
UL-Recognized Housing Material - The
standard MAC filter housing components are
manufactured using a polypropylene with a
UL94HB classification.
UV-Resistant Housing Material - The UVresistant MAC filter housing contains an
additional carbon black filler for protection
from UV light.
