Megaplast™ Polypropylene and PVDF Filter Housings (Ultrapure Water Filtration)

Home
Water Filters
Megaplast™ Polypropylene and PVDF Filter Housings (Ultrapure Water Filtration)

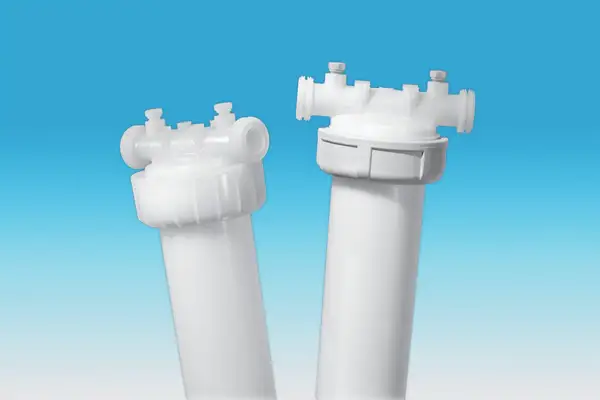

The Megaplast Polypropylene and PVDF filter housings are designed to provide excellent mechanical characteristics without utilizing any metallic components. The Megaplast Polypropylene housing accommodates 10 in. / 254 mm cartridges and is suitable for water service. The Megaplast PVDF housing accommodates 10 in. / 254 mm and 20 in. / 508 mm cartridges and is suitable for water and chemical service. The connections on both housings are molded directly into the head and bowl, reducing the space required for fit up.

Low hold-up volume
Metal free construction
Closure threads are on the "dry" side
Closure nut is free floating
Cleaned and packaged under controlled cleanroom conditions

Specifications

Materials

Polypropylene TAX/TRX Housing

Molded natural polypropylene head and bowl with molded connections, vent and drain
Closure nut: Glass filled polyamide
O-ring²: Ethylene propylene

PVDF TAV Housing

Molded PVDF head and bowl with molded connections, vent and drain
Closure nut: Glass filled PVDF
O-ring: Ethylene propylene or Teflon² encapsulated Viton²

Configurations

Connection options: DIN 25 male
Vent/drain connections
- Bowl: ¹⁄₄ in. BSP parallel female
- Head: ¹⁄₄ in. BSP parallel female or supplied blank
Polypropylene TAX/TRX Housing: AB Code 3 or RF style, 10 in. / 254 mm cartridges
PVDF TAV Housing: AB Code 3, 10 in. / 254 mm and 20 in. / 508 mm cartridges (double 222 O-ring / flat end)

Operating Conditions

Polypropylene TAX/TRX Housing

Maximum Operating Pressure: Water service: 72.5 psig @ 104 °F / 5.0 bar @ 40 °C

PVDF TAV Housing:

Maximum Operating Pressure:
- Water service: 145.0 psig @ 104 °F / 10.0 bar @ 40 °C, 108.8 psig @ 176 °F / 7.5 bar @ 80 °C
- Chemical service: 50.8 psig @ 104 °F / 3.5 bar @ 40 °C

1 Other options may be available
2 Teflon and Viton are registered trademarks of DuPont Dow Elastomers

Performance

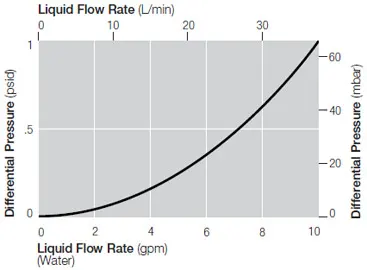

Pressure Drop vs. Liquid Flow Rate3

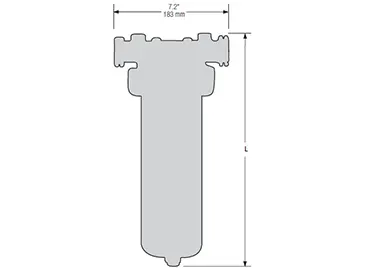

Dimensions

Ordering Information

Part Number⁴	Description	O-ring	Length (L) (in. / mm)
TAX011G26JD	10 in. / 254 mm Polypropylene housing, AB Code 3	Ethylene propylene	13.2 / 336
TRX011G26JD	10 in. / 254 mm Polypropylene housing, RF Style	Ethylene propylene	13.2 / 336
TAVW011G26JD	10 in. / 254 mm PVDF housing, Water service	Ethylene propylene	13.1 / 333
TAVW012G26JD	20 in. / 508 mm PVDF housing, Water service	Ethylene propylene	23.2 / 590
TAVC011G26H1D	10 in. / 254 mm PVDF housing, Chemical service	Teflon encapsulated Viton	13.1 / 333
TAVC012G26H1D	20 in. / 508 mm PVDF housing, Chemical service	Teflon encapsulated Viton	23.2 / 590

⁴ Omit the "D" at the end of the part number to request that the vent and drain connections be supplied blank.

Unit conversion: 1 bar = 100 kilopascals
