Fluorodyne® Filters

COST

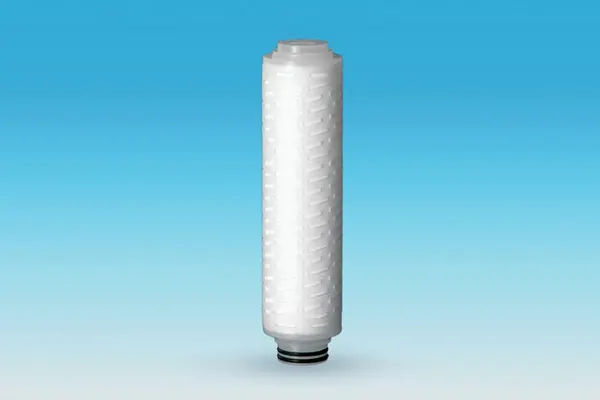

The Fluorodyne filter has been developed to meet the stringent requirements of today's high purity DI water applications.

Rated 0.2 μm, 0.1 μm and 40 nm, Fluorodyne filters offer ready wettability and broad chemical compatibility. All Fluorodyne filters are constructed of a unique modified PVDF membrane, providing superior bacteria and particle removal efficiency in demanding environments.

Excellent particle removal efficiency
Three removal ratings available
Many configurations
Manufactured in a cleanroom environment
No prewetting required
100% integrity tested

Specifications

Materials of Construction
Components	Materials
Filter Medium	Hydrophilic PVDF
Support and Drainage	Polypropylene
Core and Cage	Polypropylene
End Caps	Polypropylene
O-ring Options	Acid-proof Fluoroelastomer, EPDM, Silicone, FEP Encapsulated Fluoroelastomer
Sealing Methods	Melt seal
Removal Rating and Operating Conditions
Removal Ratings	0.2 μm, 0.1 μm, 40 nm
Nominal Filter Areas	10" : 7 ft² / 254 mm : 0.7 m² 20" : 14 ft² / 508 mm : 1.3 m² 30" : 21 ft² / 762 mm : 2.0 m² 40" : 28 ft² / 1016 mm : 2.6 m²
Maximum Operating Temperature	70˚C¹ / 158 ˚F
Maximum Forward Differential Pressure	0.55 MPa @ 50 ˚C / 80 psid @ 122 ˚F 0.34 MPa @ 70 ˚C / 50 psid @ 158 ˚F
1 Only for deoxygenated water systems and for aqueous liquids not containing alkalis.
Nominal Length	254 mm / 10 in	508 mm / 20 in	762 mm / 30 in	1016 mm / 40 in
Nominal Filter Areas	0.7 m² / 7 ft²	1.3 m² / 14 ft²	2.0 m² / 21 ft²	2.6 m² / 28 ft²

Performance

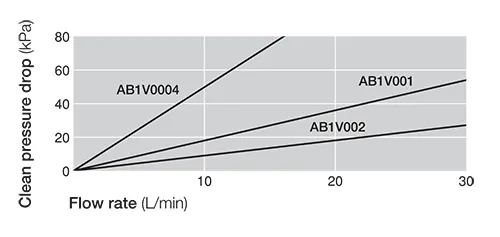

Typical Flow Characteristics – 1 cP fluid, 20 ºC

Ordering Information / Part Numbers

AB [1] V [2] [3] EY [4]

Table 1
Code	Nominal Cartridge Length
1	254 mm / 10 in
2	508 mm / 20 in
3	762 mm / 30 in
4	1016 mm / 40 in
Table 2
Code	Removal Ratings
002	0.2 μm
001	0.1 μm
0004	40 nm
Table 3
Code	O-ring Specifications	Features
3	AS568A-222	222 double O-ring
		Flat End
7	AS568A-226	226 double O-ring
		Bayonet lock / finned end
8	AS568A-222	222 double O-ring
		Finned End
Table 4
Code	O-ring Materials
H1	FEP Encapsulated Fluoroelastomer
H4	Silicone
HF	Acid-proof Fluoroelastomer
J	EPDM

Representative example part numbers

AB1V0023EYH4
AB2V0023EYH4
AB2V0028EYH4
AB3V0027EYH4
AB3V0028EYH4

AB1V0013EYH4
AB2V0013EYH4
AB2V0018EYH4
AB3V0017EYH4
AB3V0018EYH4

AB1V00043EYH4
AB2V00043EYH4
AB2V00048EYH4
AB3V00047EYH4
AB3V00048EYH4
AB4V00048EYH4
