Microza UF Modules, OLT Series

Overview
Specifications
Applications
Ordering Information
BROCHURE
DOWNLOAD
COST
Estimation

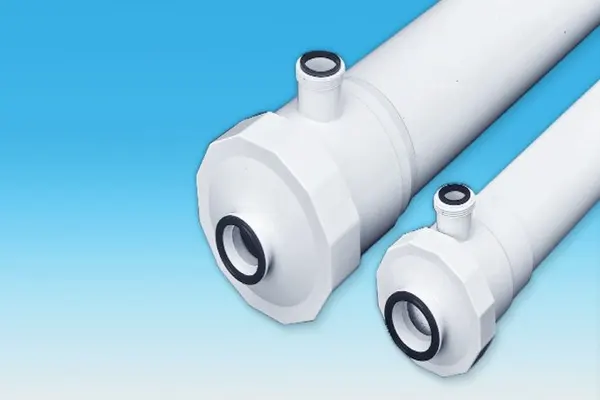

The Microza1OLT ultrafiltration (UF) modules feature hollow fiber membranes having a uniformly smooth, tight skin on both the inside and outside of the fiber.

  • Low metal extractables by pre elution using new hot water rinsing process
  • Up to 24 months on shelf life ex works due to hot water sanitization2
  • Shipped water wet
  • Designed specifically for ultra high purity water
  • Polysulfone membranes and housings
  • 6,000 and 10,000 molecular weight cut off ratings
  • External feed:
    • Feed water flows from the outside to the inside of the hollow fiber. This flow path produces exceptionally clean water and eliminates stagnant areas on the permeate side.
  • Large membrane area results in high flow rates per module
  • High temperature and pressure modules available

1Microza is a trademark of Asahi Kasei Corporation
2Recommended storage conditions: no direct sunlight, packaging unopened,ambient temperature (max 25 °C), do not freeze
3Tri-Clamp is a trademark of Ladish Co., Inc.

Specifications

Connections

Feed/Reject: PVDF union sockets for these ports are available for thermal fusion to PVDF piping. Permeate:Connections are 2 in. or 2 1⁄2 in. 3 piece clamp

Operating Parameters

OLT-6036HAW OLT-6036VAW OLT-6036SAW
Performance
Molecular weight cut-off (nominal) daltons 6,000 6,000 6,000
Initial clean permeate flow4,5 m3/h 16 16 16
gpm 70 70 70
Dimensions
Fiber inner/outer diameter mm 0.6 / 1.0 0.6 / 1.0 0.6 / 1.0
Membrane area m2 34 34 34
ft2 366 366 366
Module length mm 1,177 1,177 1,177
in. 46.3 46.3 46.3
Module diameter6 mm 172 179 172
in. 6.8 7.1 6.8
Weight kg 32 34 33
lb 71 75 73
Operating Conditions7
Maximum inlet pressure
(40°C / 104°F)		 MPa 0.9 0.9 1.2
psi 130 130 174
Maximum transmembrane pressure
(40°C / 104°F)		 MPa 0.3 0.3 0.3
psi 45 45 45
Maximum operating temperature °C 40 80 40
°F 104 176 104
Maximum sanitizing temperature °C 90 90 90
°F 194 194 194
pH range 1-14 1-14 1-14
Materials
Membrane Polysulfone
Housing Polysulfone; V and S grades have outer fiberglass reinforcement
End caps Polyphenylsulfone
Collar nuts8 Fiberglass reinforced polyphenylene ether; S grade – aluminum
Cap nuts8 Fiberglass reinforced polyphenylene ether
Potting material Epoxy resin
Gasket fluoro-polymer elastomer
Transportation Liquid Ultrapure water

4 Initial clean water permeate flow at 25 °C / 77 °F and 0.1 MPa / 14.5 psi average transmembrane pressure.
Please consult manual for general operating guidelines.
5 DESIGN FLUX IS 80% OF THIS VALUE (12.5 m3 / h or 55 GPM)
6 Nominal shell diameter excluding headers and permeate ports. Note the diameter of the dummy module used for fit-up is 172 mm / 6.8 in.
7 Pressure must be reduced at higher temperatures. See tables on following pages.
8 Non-wetted parts

OLT-5026APW
Performance
Molecular weight cut-off (nominal) daltons 10,000
Initial clean permeate flow9,10 m3/h 7.5
gpm 33
Dimensions
Fiber inner/outer diameter mm 0.6 / 1.1
Membrane area m2 23
ft2 248
Module length mm 1,147
in. 45.1
Module diameter mm 149
in. 5.81
Weight kg 23
lb 51
Operating Conditions11
Maximum inlet pressure
(40°C / 104°F)		 MPa 0.9
psi 130
Maximum transmembrane pressure
(40°C / 104°F)		 MPa 0.3
psi 45
Maximum operating temperature °C 80
°F 176
Maximum sanitizing temperature °C 90
°F 194
pH range 1-14
Materials
Membrane Polysulfone
Housing Polysulfone; V and S grades have outer fiberglass reinforcement
End caps Polyphenylsulfone
Cap nuts12 High temperature PVC
Potting material Epoxy resin
Gasket Fluoropolymer elastomer
Transportation Liquid Ultrapure water

9 Initial clean water permeate flow at 25 °C / 77 °F and 0.1 MPa /14.5 psi average transmembrane pressure.
Please consult manual for general operating guidelines.
10 DESIGN FLUX IS 80% OF THIS VALUE
11 Pressure must be reduced at higher temperatures. See tables on following pages.
12 Non-wetted parts

Operating Pressure vs Water Temperature

The allowable operating pressure will vary with water temperature. See tables below.

Part Number: OLT-6036HAW

UF Feed Temperature °C / °F Maximum Transmembrane Pressure Maximum Feed Pressure Maximum Permeate Pressure
0-30 / 32-86 0.3 MPa / 45 psi 0.9 MPa / 130 psi 0.9 MPa / 130 psi
80-90 / 176-19413 0.1 MPa / 15 psi 0.35 MPa / 50 psi 0.35 MPa / 50 psi

Part Number: OLT-6036VAW

UF Feed Temperature °C / °F Maximum Transmembrane Pressure Maximum Feed Pressure Maximum Permeate Pressure
0-70 / 32-158 0.2 MPa / 30 psi 0.9 MPa / 130 psi 0.9 MPa / 130 psi
70-80 / 158-176 0.1 MPa / 15 psi 0.8 MPa / 116 psi 0.8 MPa / 116 psi
80-90 / 176-19413 0.1 MPa / 15 psi 0.5 MPa / 73 psi 0.5 MPa / 73 psi

Part Number: OLT-6036SAW

UF Feed Temperature °C / °F Maximum Transmembrane Pressure Maximum Feed Pressure Maximum Permeate Pressure
0-30 / 32-86 0.3 MPa / 45 psi 1.2 MPa / 174 psi 1.2 MPa / 174 psi
80-90 / 176-19413 0.1 MPa / 15 psi 0.5 MPa / 73 psi 0.5 MPa / 73 psi

Part Number: OLT-5026APW

UF Feed Temperature °C / °F Maximum Transmembrane Pressure Maximum Feed Pressure Maximum Permeate Pressure
0-30 / 32-86 0.3 MPa / 45 psi 0.9 MPa / 130 psi 0.9 MPa / 130 psi
30-50 / 86-122 0.3 MPa / 45 psi 0.75 MPa / 109 psi 0.75 MPa / 109 psi
50-70 / 122-158 0.2 MPa / 30 psi 0.65 MPa / 94 psi 0.65 MPa / 94 psi
70-80 / 158-176 0.15 MPa / 22 psi 0.6 MPa / 87 psi 0.6 MPa / 87 psi
80-90 / 176-19413 0.1 MPa / 15 psi 0.55 MPa / 80 psi 0.55 MPa / 80 psi

Applications

The OLT modules are recommended for high purity water systems where the TOC is less than 20 ppb and the particle counts in the feed are as shown in the table below.

Feed Conditions

Particle Size Maximum no. of particles/ml
> 0.1 μm 100
> 0.2 μm 20

Ordering Information / Part Numbers

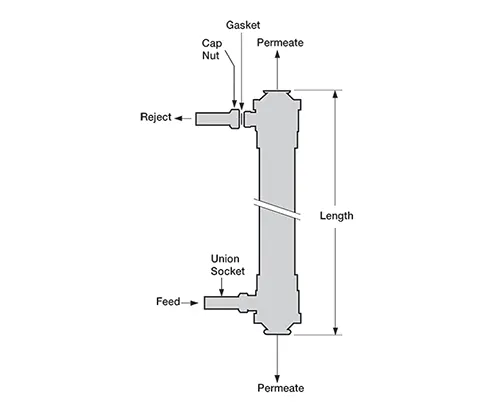

Dimensions

Module

Part Number Permeate Connection Size Feed and Reject Connection Size
OLT-6036HAW 2 1⁄2" 3 piece clamp 63 mm O.D.
OLT-6036VAW 2 1⁄2" 3 piece clamp 63 mm O.D.
OLT-6026SAW 2 1⁄2" 3 piece clamp 63 mm O.D.
OLT-5026APW 2" 3 piece clamp 40 mm O.D.

Spare Parts

Description Material Module Spare Part Numbers13
OLT-6036H OLT-6036V OLT-6036S
Union Socket PVDF AUME-OT60H-31
0450602		 AUME-OT60H-31
0450602		 AUME-OT60H-31
0450602
Cap Nut GF reinforced PPE AUME-OT60H-13b
0450600		 AUME-OT60H-13b
0450600		 AUME-OT60H-13b
0450600
Cap Nut Retainer Ring GF reinforced PPE AUME-OT60H-13a
0450601		 AUME-OT60H-13a
0450601		 AUME-OT60H-13a
0450601
Permeate Gasket Fluropolymer elastomer AUME-OT60H-17
0150612		 AUME-OT60H-17
0150612		 AUME-OT60H-17
0150612
Feed/Reject O-Ring Fluropolymer elastomer AUME-OT60H-14
0150611		 AUME-OT60H-14
0150611		 AUME-OT60H-14
0150611
Dummy Polysulfone AUME-OT60H-30
0450608		 AUME-OT60H-30
0450608		 AUME-OT60H-30
0450608
Description Material Module Spare Part Numbers1
OLT-5026AP
Union Socket PVDF AUME-OT50G-20
0450504
Cap Nut Stainless steel or PVDF AUME-OT50G-13
0450558
(Stainless steel / PFA coating
Permeate Gasket Fluropolymer elastomer AUME-OT50G-17
0150328
Feed/Reject O-Ring Fluropolymer elastomer AUME-OT50G-14
0150550
Dummy Polysulfone AUME-OT50G-30
0450570

14Spare parts can be ordered by either part number
