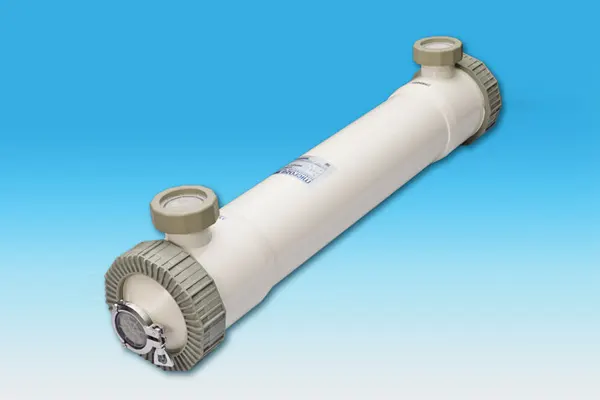

Microza1 Ultrafiltration Modules OAT Series for Enhanced Efficiency and Cleanliness

The Microza¹ OAT ultrafiltration (UF) modules feature the latest high flow hollow fiber technology using a newly developed asymmetric support structure and a dual skin cut off layer on both the inside and outside of the fiber.

Dual rated at 2 nm by Pall’s gold nanoparticle challenge test and 4 kD molecular weight cut off
Diffusion driven contamination control avoids accumulation on membrane
20 nm particle rinse up control
Low metal extractables by pre elution using new hot water rinsing process
Up to 24 months on shelf life ex works due to hot water sanitization²
Shipped water wet

100% integrity tested and documented
High temperature and pressure modules available

Application

The Microza OAT modules are used in today´s most demanding ultra high purity water systems. The outer module dimensions and connections are compatible with Microza OLT 6036 series. Therefore they are also suitable for upgrades of existing installations.

Specifications

Feed Specifications

Particle Size	Maximum number of particles /ml effluent pre-filter
≥ 0.1 μm	100
≥ 0.2 μm	20

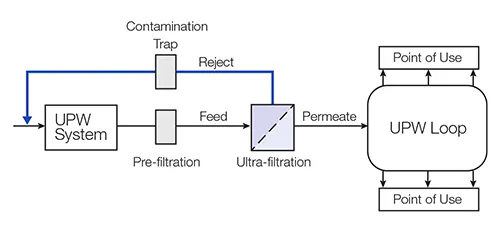

Typical Operation Scheme

¹Microza is a trademark of Asahi Kasei Corporation
²Recommended storage conditions: no direct sunlight, packaging unopened, ambient temperature (max 25°C), do not freeze

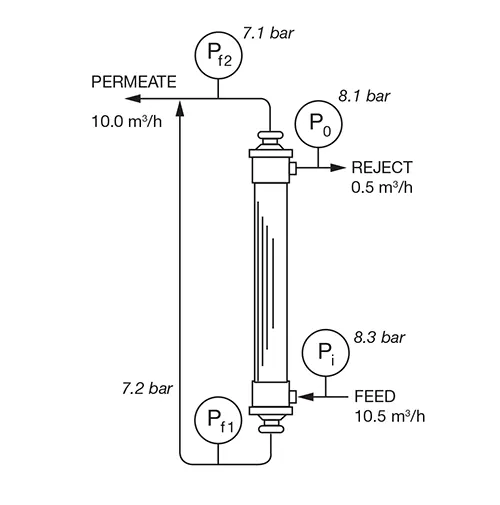

Typical Installation Scheme

Additional Information

Spare Parts

Description	Material	Module Spare Part Numbers⁹
Description	Material	OAT-6036HA, VA, SA	Attached to module
Union Socket Feed / Reject Union Socket Reject, metric DN15 Union Socket Feed, metric DN50 Union Socket Permeate, metric DN40	PVDF	AUME-OT60H-31 0450602 OT60K15 OT60F50 OT60P40
Cap Nut	GF reinforced PPE	AUME-OT60H-13b 0450600	✓
Cap Nut Retainer Ring	GF reinforced PPE	AUME-OT60H-13a 0450601
Permeate Gasket	Fluropolymer elastomer	AUME-OT60H-17 0150612	✓
Feed/Reject Gasket Clamp	Fluropolymer elastomer SUS304	AUME-OT60H-14 0150611 AUME-OT60H-16 0150613	✓ ✓
Dummy	Polysulfone PVC	AUME-OT60H-30 0450608 AUME-OT60H-30X 0450609

Please consult manual for installation instructions. Installation kits available on request.

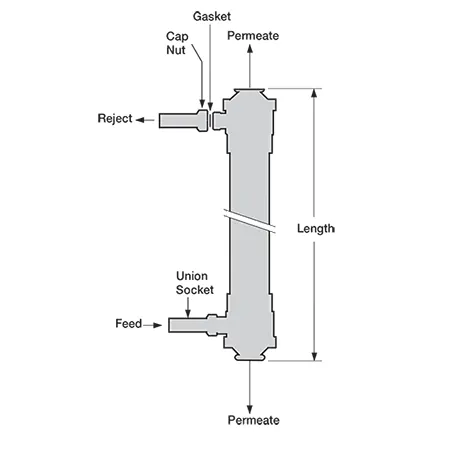

Dimensions

Connections

Feed /Reject:
PVDF union sockets for these ports are available
for thermal fusion to PVDF piping.
Permeate:
Connections are 2 1/2 in. 3 piece clamp.

⁷ High temperature only for short term sanitization
⁸ At 30°C / 86°F at max 10 m³/h or 44 gpm
⁹ Spare parts can be ordered by either part number.

Ordering Information / Part Numbers

Part Number			OAT-6036HAW	OAT-6036VAW	OAT-6036SAW
Performance	Molecular weight cut-off (nominal)	daltons	4,000	4,000	4,000
	Particle rating	nm	2	2	2
	Clean permeate flow³	m³/ h	10	10	10
	Clean permeate flow³	gpm	44	44	44
Dimensions	Fiber inner/outer diameter	mm	0.6 / 1.0	0.6 / 1.0	0.6 / 1.0
	Membrane area	m²	34	34	34
	Membrane area	ft²	366	366	366
	Module length	mm	1,177	1,177	1,177
	Module length	in.	46.3	46.3	46.3
	Module diameter⁴	mm	172	179	172
	Module diameter⁴	in.	6.8	7.1	6.8
	Weight	kg	32	34	33
	Weight	lb	71	75	73
Operating Conditions⁵	Maximum inlet pressure	MPa	0.9	0.9	1.2
	(3 0°C / 86°F)	psi	130	130	174
	Maximum transmembrane pressure	MPa	0.3	0.3	0.3
	(30°C / 86°F at max 10m³/h or 44 gpm)	psi	45	45	45
	Maximum operating temperature	°C	30	80	30
	Maximum operating temperature	°F	104	176	104
	Maximum sanitizing temperature	°C	90	90	90
	Maximum sanitizing temperature	°F	194	194	194
Materials	Membrane	Polysulfone
	Housing	Polysulfone; V and S grades have outer fiberglass reinforcement
	End caps	Polyphenylsulfone
	Collar nuts⁶	Fiberglass reinforced polyphenylene ether
	Cap nuts⁶	Fiberglass reinforced polyphenylene ether
	Potting material	Epoxy resin
	Gasket	Fluoropolymer elastomer
	Filling	Ultrapure water

³ Initial clean water permeate flow at 25°C / 77°F and 0.1 MPa /14.5 psi average transmembrane pressure.
Please consult manual for general operating guidelines.

⁴ Nominal shell diameter excluding headers and permeate ports. Note the diameter of the dummy module used for fit-up is 172 mm / 6.8 in.

⁵ Pressure must be reduced at higher temperatures. See tables on following pages.

⁶ Non-wetted parts

Operating Pressure vs Water Temperature

The allowable operating pressure will vary with water temperature. See tables below.

Part Number: OAT-6036HAW

UF Feed Temperature °C / °F	Maximum Transmembrane Pressure⁸	Maximum Feed Pressure	Maximum Permeate Pressure
0-30 / 32-86	0.3 MPa / 45 psi	0.9 MPa / 130 psi	0.9 MPa / 130 psi
80-90 / 176-194⁷	0.1 MPa / 15 psi	0.35 MPa / 50 psi	0.35 MPa / 50 psi

Part Number: OAT-6036VAW

UF Feed Temperature °C / °F	Maximum Transmembrane Pressure⁸	Maximum Feed Pressure	Maximum Permeate Pressure
0-70 / 32-158	0.2 MPa / 30 psi	0.9 MPa / 130 psi	0.9 MPa / 130 psi
70-80 / 158-176	0.1 MPa / 15 psi	0.8 MPa / 116 psi	0.8 MPa / 116 psi
80-90 / 176-194⁷	0.1 MPa / 15 psi	0.5 MPa / 73 psi	0.5 MPa / 73 psi

Part Number: OAT-6036SAW

UF Feed Temperature °C / °F	Maximum Transmembrane Pressure⁸	Maximum Feed Pressure	Maximum Permeate Pressure
0-30 / 32-86	0.3 MPa / 45 psi	1.2 MPa / 174 psi	1.2 MPa / 174 psi
80-90 / 176-194⁷	0.1 MPa / 15 psi	0.5 MPa / 73 psi	0.5 MPa / 73 psi
