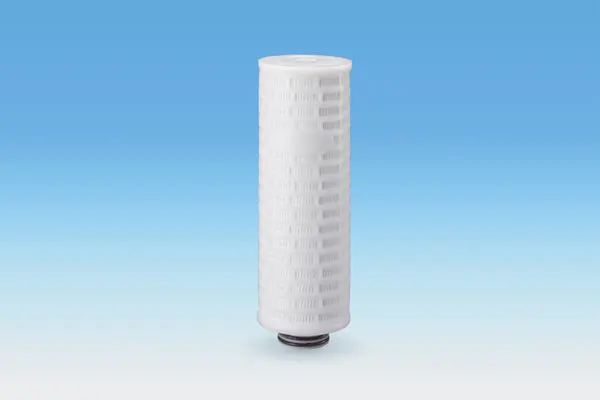

IonKleen™ G2 AQ Purifier

The IonKleenTM G2 AQ Purifier has been specifically designed for the removal of metal ions from ultrapure water at high flow process conditions. It is ideally suited for use in the semiconductor industry’s most critical final cleaning processes. Utilizing Pall’s IonKleen G2 AQ membrane, the surface has been modified to incorporate ion exchange groups on its surface resulting in spontaneous and immediate metal removal from ultrapure water.

Features & Benefits

  • High metal removal efficiency
  • Simplifies purification techniques
  • High capacity
  • High flow
  • Shipped dry
  • Manufactured in a cleanroom environment

Specifications

Materials of Construction

Components Materials
Filter Medium Hydrophilic ultra high molecular weight polyethylene (UHMWPE)
Core, cage, end caps, support and drainage High density polyethylene (HDPE)
O-rings FEP Encapsulated Fluoroelastomer
Filter type ABDG1
Purifier Media Area 1.3 m2 / 14 ft2
Ion Exchange Capacity > 68 meq
Maximum Operation Temperature 70 °C / 158 °F
Maximum Operation Flow < 45 L/min
Maximum Forward Differential Pressure 0.1 MPa @ 70 °C / 14.5 psid @ 158 °F

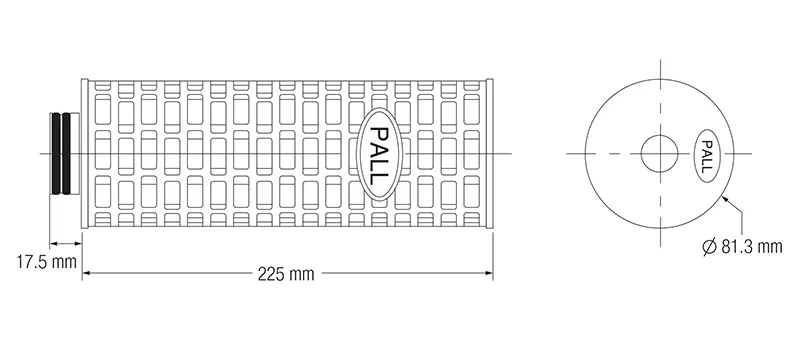

Dimensions

Performance

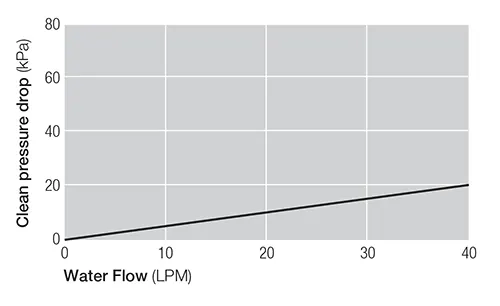

Pressure Drop vs. Liquid Flow Rate (Water, 20°C)1

1For liquids with viscosity differing from water, multiply the pressure drop by the viscosity in centipoise.

Ordering Information / Part Numbers

ABDG1UPW3EH1
