IonKleen™ AQ Purifier

Overview
Specifications
Applications
Performance
Ordering Information
BROCHURE
DOWNLOAD
COST
Estimation

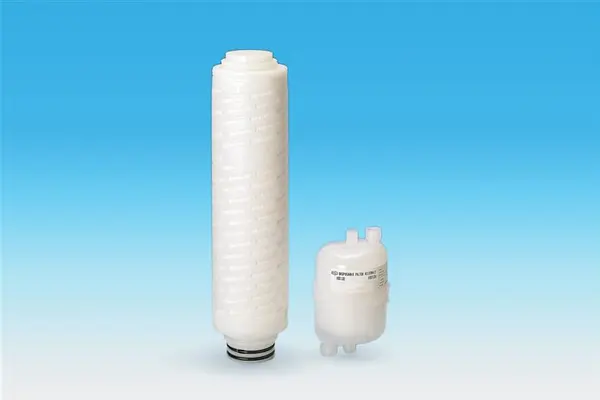

The IonKleen™ AQ Purifier has been specifically designed for the removal of metal ions from ultrapure water. It is ideally suited for use in the semiconductor industry's most critical final cleaning processes.

Utilizing Pall’s latest technology developments, the IonKleen AQ membrane has been modified to incorporate ion exchange groups on its surface resulting in spontaneous and immediate metal removal from ultrapure water.

Features and Benefits

  • High metal removal efficiency
  • Simplifies purification techniques
  • High capacity
  • Shipped dry
  • Manufactured in a cleanroom environment

Specifications

Materials of Construction

Components Materials
Configurations ABD1 DFA1
Medium Hydrophilic ultra-high molecular weight polyethylene (UHMWPE)
Support and Drainage High density polyethylene (HDPE)
Core and Cage High density polyethylene (HDPE) Polypropylene
End Caps High density polyethylene (HDPE) Polypropylene
Shell - Polypropylene
Media Area 0.86 m2 / 9.2 ft2 0.16 m2 / 1.72 ft2
Total Metal Ion Exchange Capacity (90% Efficiency) > 45 meq > 8 meq
Maximum Recommneded Flow 30 L / min 3 L / min
Maximum Operating Temperature 30 °C / 86 °F
Maximum Forward Differential Pressure 0.34 MPa / 50 psid
Maximum Operating Pressure - 0.49 MPaG (30 °C) / 71 psig (80 °F)

Applications

Recommended Applications

The IonKleen AQ Purifier is recommended for point-of-use rinse water purification. It has also shown positive results in the purification of ultrapure water with pH > 4.

Performance

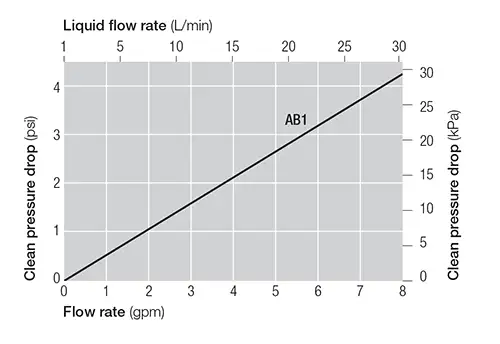

Typical Flow Charcteristics – 1 cP fluid, 20 ºC

ABD1

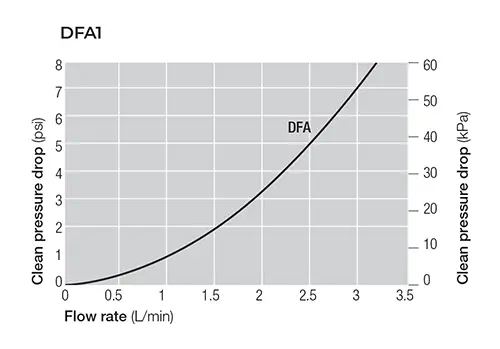

DFA1

Filter Capsule Dimensions

ABD1 Cartridge

ABD1UPW3EH1

Code O-ring Specifications
3 AS568A-222
Code O-ring Materials
H1 FEP Encapsulated Fluoroelastomer

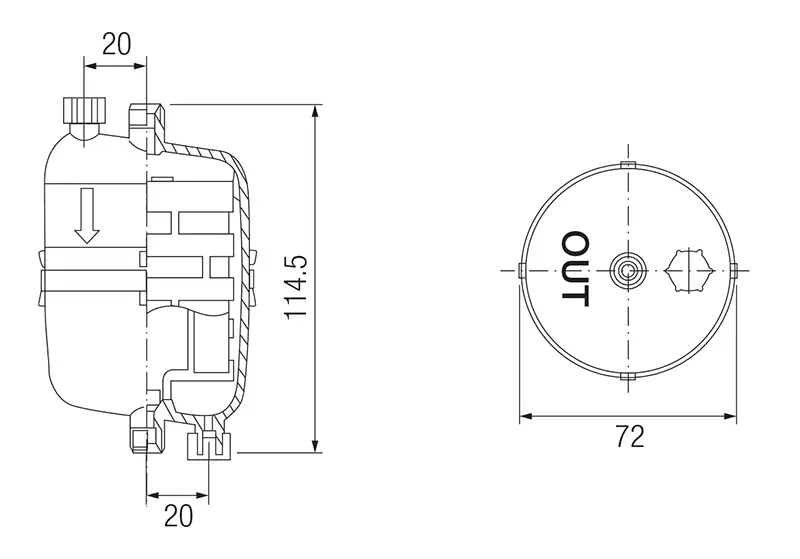

DFA 1 Capsule

DFA1UPWESW44

Code Connections
Inlet / Outlet Vent / Drain
SW44 1⁄4 in Swagelok2 1⁄4 in Swagelok2

2 Swagelok is a trademark of Swagelok Co..
