IonKleen™ AQHT Purifier

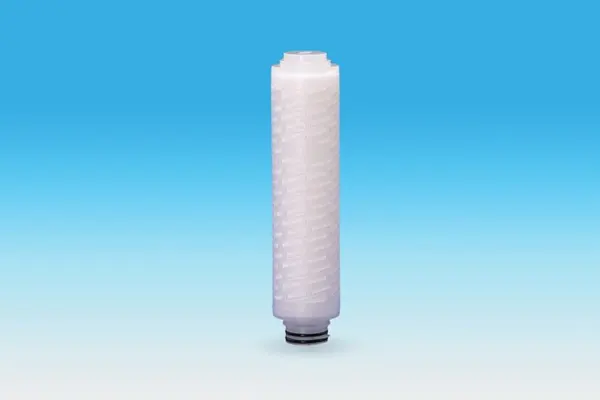

The IonKleen AQHT purifier has been specifically designed for the removal of metal ions from ultrapure hot water. It is ideally suited for use in the semiconductor Industry's most critical final cleaning processes.

The IonKleen AQHT purifier’s membrane has been modified to incorporate ion exchange groups on its surface resulting in spontaneous and immediate metal removal from ultrapure hot water.

The purifier is available in standard filter configurations.

Features and Benefits

Excellent metal removal efficiency in high purity hot water
Initial cleanliness of the purifier minimizes the rinse-up period
Simplifies purification techniques
High capacity for metal ions
Manufactured in a cleanroom environment

^*Microza is a trademark of Asahi Kasei Corporation.

Specifications

Materials

Medium: Hydrophilic ultra high molecular weight polyethylene (UHMWPE)
Core, Cage, End Caps; Support and Drainage: Polypropylene
O-Ring Options: EPR. FEP encapsulated fluoroelastomer, Kalrez¹, acid resistant fluoroelastomer and silicone

Configurations

Nominal length:
- AB1: 254 mm / 10 in.
- AB2: 508 mm / 20 in.
- AB3: 762 mm / 30 in.
Nominal diameter:
- 70 mm / 2.75 in.

O-ring size/end caps:

Code 3: 222 double O-ring / flat end
Code 7: 226 double O-ring / bayonet lock / finned end
Code 8: 222 double O-ring / finned end

Operating Conditions

Maximum Operating Temperature: 85 °C / 185 °F²
Maximum Forward Differential Pressure: 0.34 MPa / 50 psi

Performance Characteristics

Total Metal Ion Exchange Capacity³ AB1: greater than 41 meq
Maximum Recommended Flow AB1: < 30 L / min
Maximum Service Life: 6 months

Recommended Application

The IonKleen AQHT Purifier is recommended for removing trace metal ions from hot rinse water.

¹Kalrez is Registered trademarks of DuPont Performance Elastomers.
²For dissolved oxygen levels of ²10 ppb.
³Typically >90% efficient as determined using a mixed ion challenge, including Na, Fe, Cu, Ca, Al and Zn, at typical influent concentrations of 1 ppb or less.

Performance

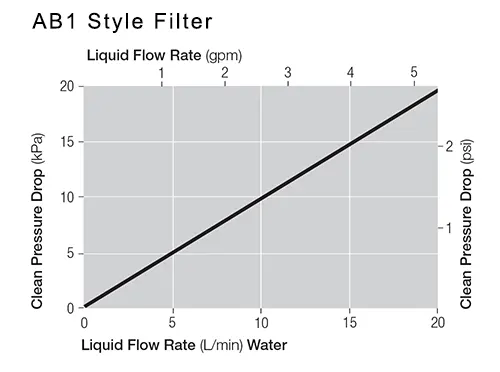

Pressure Drop vs. Liquid Flow Rate

Ordering Information / Part Numbers

Part Numbers/Ordering Information

Part Number	Nominal Length (mm / in.)	Configuration Code	O-Ring Connections⁴
AB1HUPW7EH1	254 / 10	7	FEP Encapsulated fluoroelastomer
AB1HUPW8EH1	254 / 10	8	FEP Encapsulated fluoroelastomer
AB1HUPW3EH1	254 / 10	3	FEP Encapsulated fluoroelastomer
AB2HUPW7EH1	508 / 20	7	FEP Encapsulated fluoroelastomer
AB2HUPW8EH1	508 / 20	8	FEP Encapsulated fluoroelastomer
AB2HUPW3EH1	508 / 20	3	FEP Encapsulated fluoroelastomer
AB3HUPW7EH1	762 / 30	7	FEP Encapsulated fluoroelastomer
AB3HUPW8EH1	762 / 30	8	FEP Encapsulated fluoroelastomer
AB3HUPW3EH1	762 / 30	3	FEP Encapsulated fluoroelastomer

⁴Other O-ring material options are available as special orders.
