Profile® UP Filter

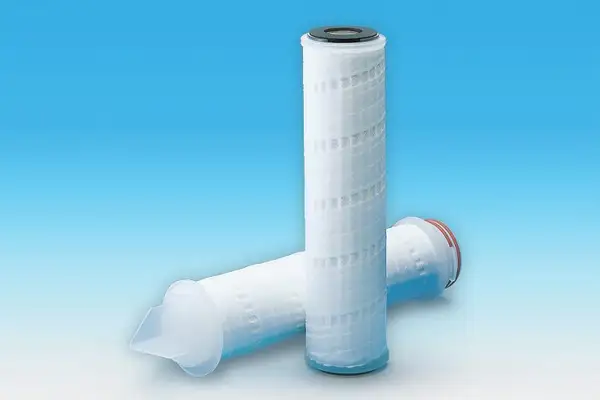

This Profile UP filter consists of a pleated, depth medium using the Ultipleat® filter geometry. The result is a resin trap, pre-RO or cooling water filter with superior flow vs. differential pressure capabilities.

All polypropylene construction
High particle removal efficiency
Long service life
Fixed pore structure
Low extractables
No surfactants or binder resins used during manufacture
Available in many removal ratings
Available in an RF configuration so the cartridge may fit into a housing designed to hold either a 64 mm or 70 mm / 2.5 in. or 2.75 in. O.D. filter
Very low clean pressure drop

Specifications

Materials

Medium: Polypropylene
Core, cage, end caps: Polypropylene
Gasket: Polyethylene
O-ring: Silicone

Removal Ratings

3.2 μm, 4.5 μm, 6 μm, 10 μm, 20 μm, 30 μm, 40 μm, 50 μm, 70 μm, 100 μm

Configurations

RF style filter available as a 254 mm / 10 in., 508 mm / 20 in., 762 mm / 30 in., or 1016 mm / 40 in. long filter cartridge
Diameter: 64 mm / 2.5 in.
Double open end, flat gasket welded to each end
AB style Code 3, 7 and 8 available as 254 mm / 10 in., 508 mm / 20 in., 762 mm / 30 in., or 1016 mm / 40 in. long filters

Operating Characteristics

Maximum Differential Pressure:
- 0.41 MPa @ 30°C / 60 psid @ 86°F;
- 0.34 MPa @ 50°C / 50 psid @ 122°F;
- 0.21 MPa @ 70°C / 30 psid @ 158°F;
- 0.1 MPa @ 80°C / 15 psid @ 176°F

Performance

Removal Rating/Pressure Drop

Cartridge Grade	Removal Rating in Microns (μm) at % Efficiency¹		Clean Pressure Drop in Water Per 254 mm / 10 in. Element
Cartridge Grade	90%	99.98%	kPa / 10 L / min	psi / gpm
UY020	< 1	3.2	2.37	0.13
UY045	1.2	4.5	1.55	0.085
UY060	2.5	6	0.64	0.035
UY100	4.3	10	0.55	0.030
UY200	10.5	20	0.46	0.025
UY300	16.5	30	0.36	0.020
UY400	19	40	0.27	0.015
UY500	25	50	0.18	≤ 0.010
UY700	35	— ²	0.18	≤ 0.010
UY1000	60	— ²	0.18	≤ 0.010

Ordering Information / Part Numbers

Part Number	Removal Rating (μm)	Nominal Length³ (mm / in.)	Configuration³ Code	O-Ring/Gasket Material³
AB1UY0203H4	3.2	254 / 10	3	Silicone
R1FUY020J8	3.2	254 / 10	Double Open End / Flat Gasket	Polyethylene
AB1UY0453H4	4.5	254 / 10	3	Silicone
R1FUY045J8	4.5	254 / 10	Double Open End / Flat Gasket	Polyethylene
AB1UY0603H4	6	254 / 10	3	Silicone
R1FUY060J8	6	254 / 10	Double Open End / Flat Gasket	Polyethylene
AB1UY1003H4	10	254 / 10	3	Silicone
R1FUY100J8	10	254 / 10	Double Open End / Flat Gasket	Polyethylene
AB1UY2003H4	20	254 / 10	3	Silicone
AB1UY4003H4	40	254 / 10	3	Silicone
R1FUY400J8	40	254 / 10	Double Open End / Flat Gasket	Polyethylene
AB1UY10003H4	100	254 / 10	3	Silicone

¹ Rating of filter is based upon the modified Oklahoma State University (OSU) F-2 Filter Performance (Beta Rating) Test.
² Precision evaluation of the 99.98% removal efficiency for these coarse grades is not possible with the OSU test procedure utilized.
³ Other lengths, configurations and gasket materials are available.

Unit conversion: 1 bar = 100 kilopascals
