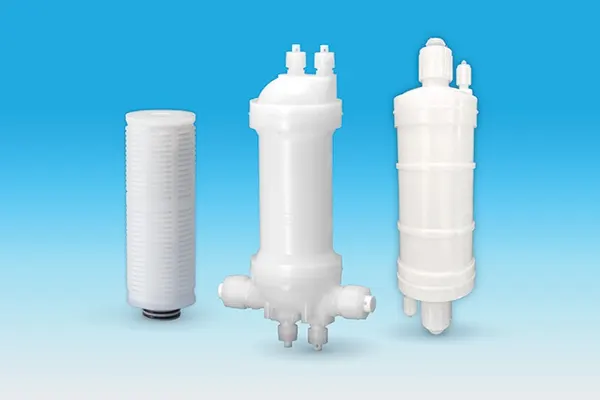

Ultipleat® G2 SP DR Filters and Ultipleat® G2 SP DR KC Assemblies

Overview
Specifications
Performance
Ordering Information
BROCHURE
DOWNLOAD
COST
Estimation

The Pall Ultipleat G2 SP DR filter is designed specifically for high flow and improved particle removal in critical surface preparation chemical baths such as HF and BOE. The SP DR filter features a highly asymmetrical membrane construction, developed using Pall’s proprietary membrane modeling technology (MMT) .

The pore size distribution of the membrane uniformly transitions from microporous to nanoporous throughout its depth. The result is a new, application-specific membrane morphology designed for deep submicron retention of particles down to 2 nanometers. This retention is achieved without the flow restriction limitations of conventional membrane pore structures.

The 2 nanometer, 5 nanometer and 10 nanometer Ultipleat G2 SP DR filter uses native polyarylsulfone with over 40% higher surface energy than typical surface modified non-dewet PTFE membranes.

The Ultipleat G2 SP DR KC assemblies are completely disposable filter units. They are ideally suited for the filtration of etchant, low temperature stripping chemicals, and DI water.

  • MMT-enhanced dual retention of particles
  • Superior HF filtration
  • Higher flow rates and longer life
  • Hyperfine microporous membrane matrix
  • High surface energy membrane for minimized microbubble formation
  • Faster tool qualification for reduced cost of ownership
  • Prevent process contamination by using KC disposable assemblies

Specifications

Materials of Construction

Components Materials
Filter Medium Polyarylsulfone
Support and drainage Polyethylene
Core,cage and end caps Polyethylene
Sealing method Melt seal
Housing PFA
O-ring options FEP encapsulated fluoroelastomer, FFKM

* All fluoro-polymer materials made without PFOA

Product Name Ultipleat G2 SP DR Filters
Removal Ratings 30 nm 10 nm 5 nm 2 nm
Media Wettability Hydrophilic Hydrophobic
Filter Areas 1.9 m2 / 20.6 ft2 1.4 m2 / 15.0 ft2
Maximum Operating Temperature 70 °C / 158 °F
Maximum Forward Differential Pressure 0.1 MPa / 15 psid @ 70 °C / 158 °F
Product Name Ultipleat G2 SP DR KC Assemblies
Housing Material PFA1 HDPE
Removal Ratings 10 nm 5 nm 2 nm 5 nm 2 nm
Media Wettability Hydrophilic Hydrophobic
Filter Areas 1.4 m2 / 15 ft2
Flow Inline L-flow T-flow Inline
LDFGN1 LDFDL1 LDFDT1 LDFGN1
Maximum Operating Temperature 70 °C / 158 °F 60 ºC / 140 ºF
Maximum Operating Pressure 0.49 MPaG / 70 psig @ 25 ºC / 77 ºF
0.34 MPaG / 50 psig @ 70 ºC / 158 ºF		 0.49 MPaG / 70 psig @ 25 ºC / 77 ºF
0.34 MPaG / 50 psig @ 60 ºC / 140 ºF
Maximum Forward Differential Pressure 0.1 MPa / 15 psid @ 70 °C / 158 °F 0.1 MPa / 15 psid @ 60 ºC / 140 ºF

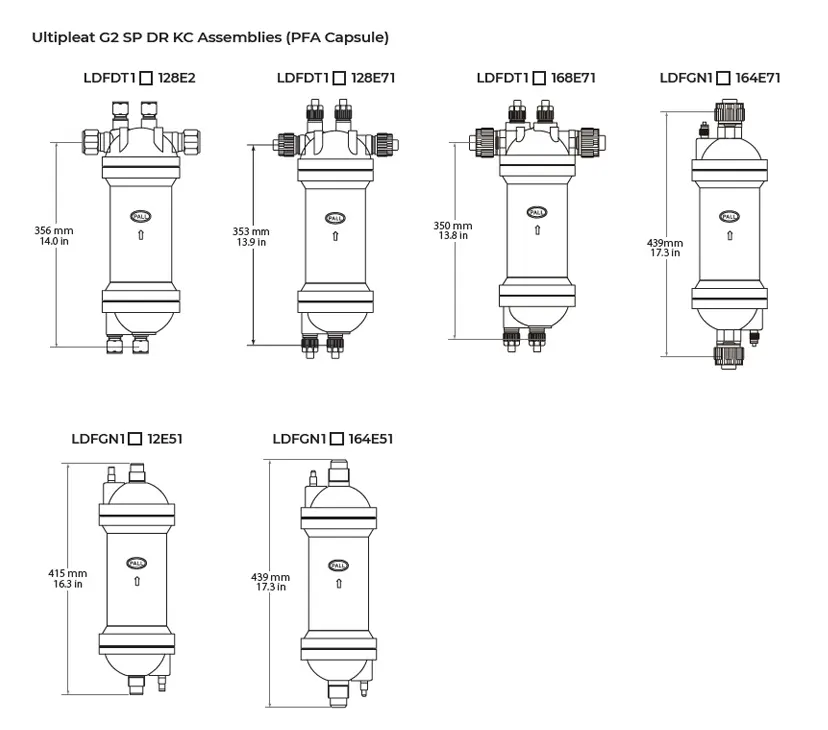

Dimensions (nominal)

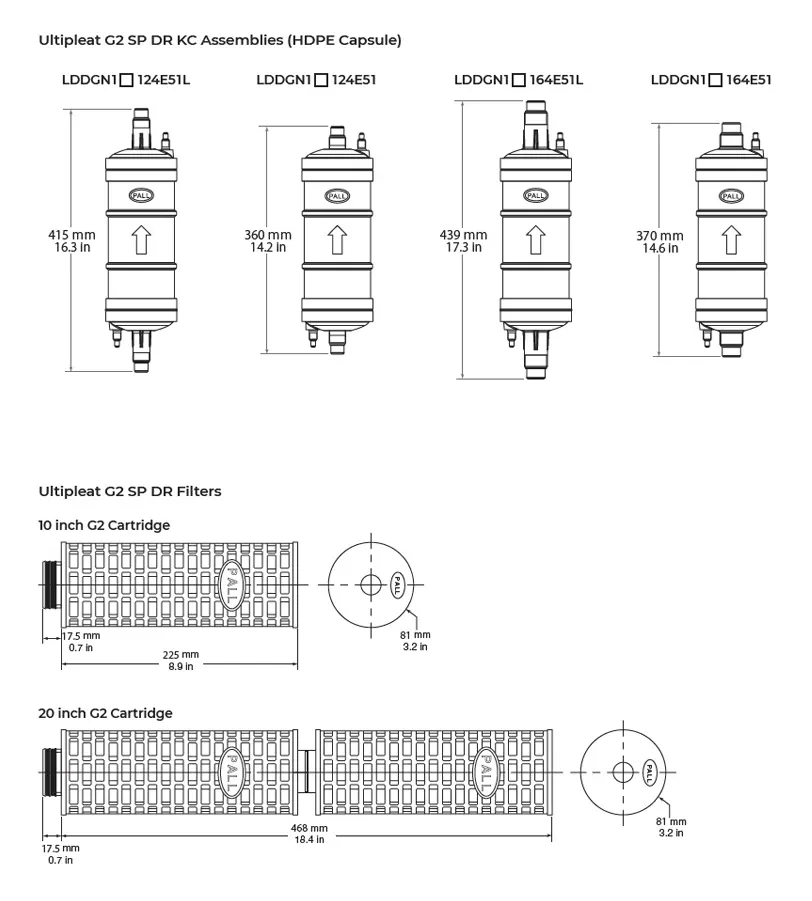

Dimensions (nominal)

Performance

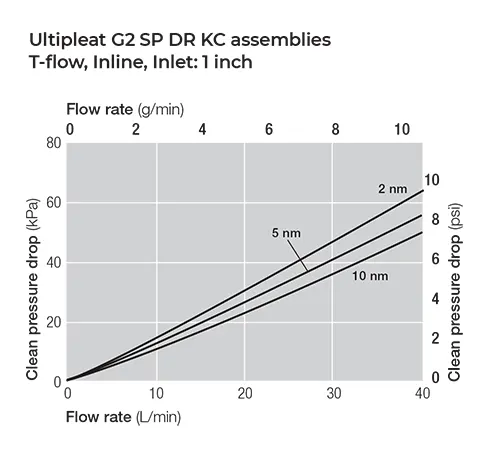

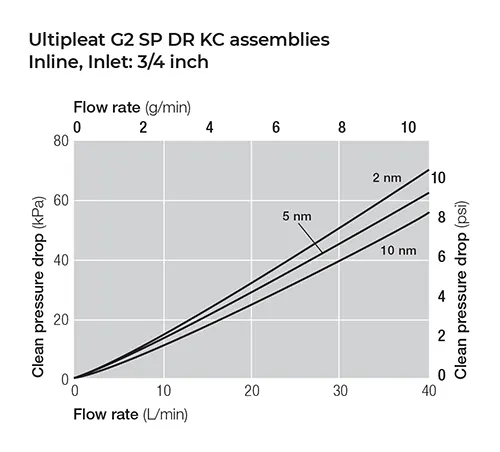

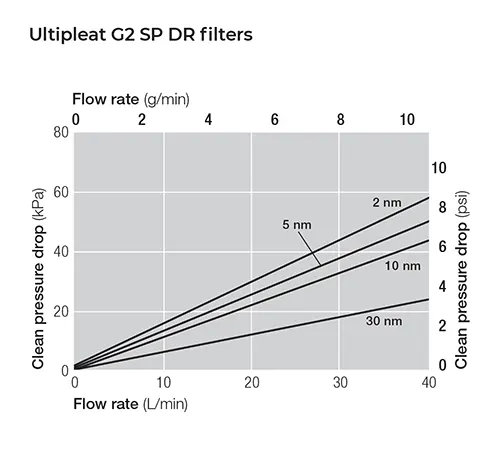

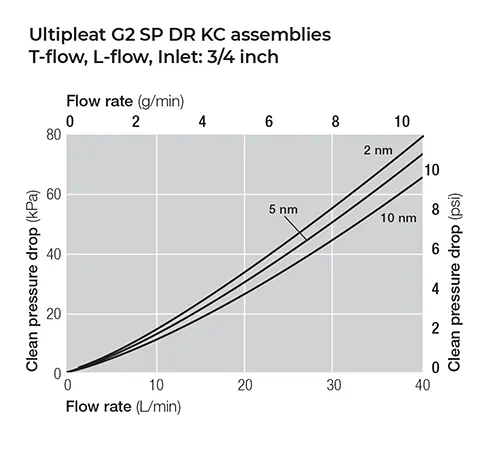

Typical Flow Characteristics – 1 cP fluid, 20 ºC

Ordering Information / Part Numbers

Part Numbers / Ordering Information4
Ultipleat G2 SP DR KC Assemblies (PFA Capsule)

LDF [1] 1[2] [3] E [4] [5]

Table 1

Code Flow
DT T-flow
DL L-flow
GN Inline

Table 2

Code Removal Ratings
HSAH 2 nm
HSSH 5 nm
HSVH 10 nm

Table 3

Code Inlet/Outlet Vent/Drain Memo
Head end Bowl end
12 3/4" in male 3/8" in male 3/8" in male Inline
128 3/4" in male 1/2" in male 1/2" in male T-flow / L-flow
164 1" in male 1/4" in male 1/4" in male Inline
168 1" in male 1/2" in male 1/2" in male T-flow
17 1" in female 1/2" in female 1/2" in female Inline

Table 4

Code Connections
51 Flare style
71 Super Pillar 300 P series (Nippon Pillar)2

Table 5

Code Prewet Option Scope
None Dry 30 nm only
-K6 Dry, Low metal extractables3 30 nm only
-K13C Prewet filter (packaged in DI water), Low metal extractables3 5 nm, 10 nm
-K13D Prewet filter (packaged in DI water), Low metal extractables3 2 nm

Ultipleat G2 SP DR KC Assemblies (HDPE Capsule)

LDDGN1 [1] [2] E51 [3]

Table 1

Code Removal Ratings
HSAH 2 nm
HSSH 5 nm

Table 2

Code Inlet/Outlet Vent/Drain Total Length
Head end Bowl end
124 3/4" in male 1/4" in male 1/4" in male 360 mm (14.2 in)
124L 3/4" in male 1/4" in male 1/4" in male 415 mm (16.3 in)
164 1" in male 1/4" in male 1/4" in male 370 mm (14.6 in)
164L 1" in male 1/4" in male 1/4" in male 439 mm (17.3 in)

Table 3

Code Prewet Option Scope
None Dry Available
-K3 Prewet filter (packaged in DI water) 5 nm, 10 nm
-K6 Dry, Low metal extractables3 30 nm
-K13C Prewet filter (packaged in DI water), Low metal extractables3 5 nm, 10 nm
-K13D Prewet filter (packaged in DI water), Low metal extractables3 2 nm

Ultipleat G2 SP DR Filters

ABDG [1] [2] 3E [3] [4]

Table 1

Code Length (Nominal)
Inch mm
1 10 225
2 20 468

Table 2

Code Removal Ratings
HSAH 2 nm
HSSH 5 nm
HSVH 10 nm
HSQ 30 nm

Table 3

Code O-ring Material
H1 FEP-encapsulated fluoroelastomer
H38 FFKM

Table 4

Code Prewet Option Scope
None Dry Available
-K3 Prewet filter (packaged in DI water) 5 nm, 10 nm
-K6 Dry, Low metal extractables3 30 nm
-K13C Prewet filter (packaged in DI water), Low metal extractables3 2 nm, 5 nm, 10 nm
-K13D Prewet filter (packaged in DI water), Low metal extractables3 2 nm

3 Please contact Pall for the extractable conditions
4 Not all code combinations have part numbers available. Please contact Pall for part number availability.
