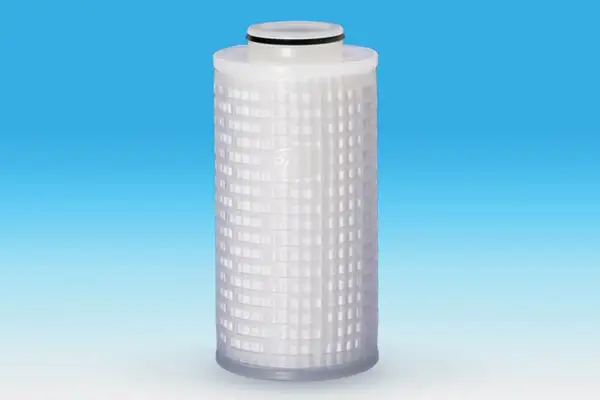

Pall® Ultipleat PK filter cartridges are designed for high flow rate, aqueous applications required on 7G and 10.5G liquid crystal display (LCD) processes. These filters can handle flow rates in excess of 300 L/min, thereby reducing the system footprint and change-out costs. Ultipleat PK filters are available in four filter media types; polypropylene, highly asymmetric hydrophilic polysulfone, hydrophilic polyethersulfone and PTFE, providing a choice of removal ratings from 0.03 µm to 40 µm.
UPK510 [1] [2] [3]
1 Standard for Polypropylene and Highly asymmetric hydrophilicpolysulfone and Hydrophilic polyethersulfone media
(A special filter cartridges for flushing debris from the system upon initial startup)
(Polypropylene Media) UPK510UY020JU UPK510UY045JU UPK510UY100JU UPK510UY200JU UPK510UY300JU UPK510UY400JU
(Highly Asymmetric Hydrophilic Polysulfone Media) UPK510S030JU UPK510S100JU UPK510S200JU UPK510S450JU
(Hydrophilic Polyethersulfone Media) UPK510S1200JU (PTFE Media) UPK510F002H1 UPK510F010H1 UPK510F030H1 UPK510F100H1
